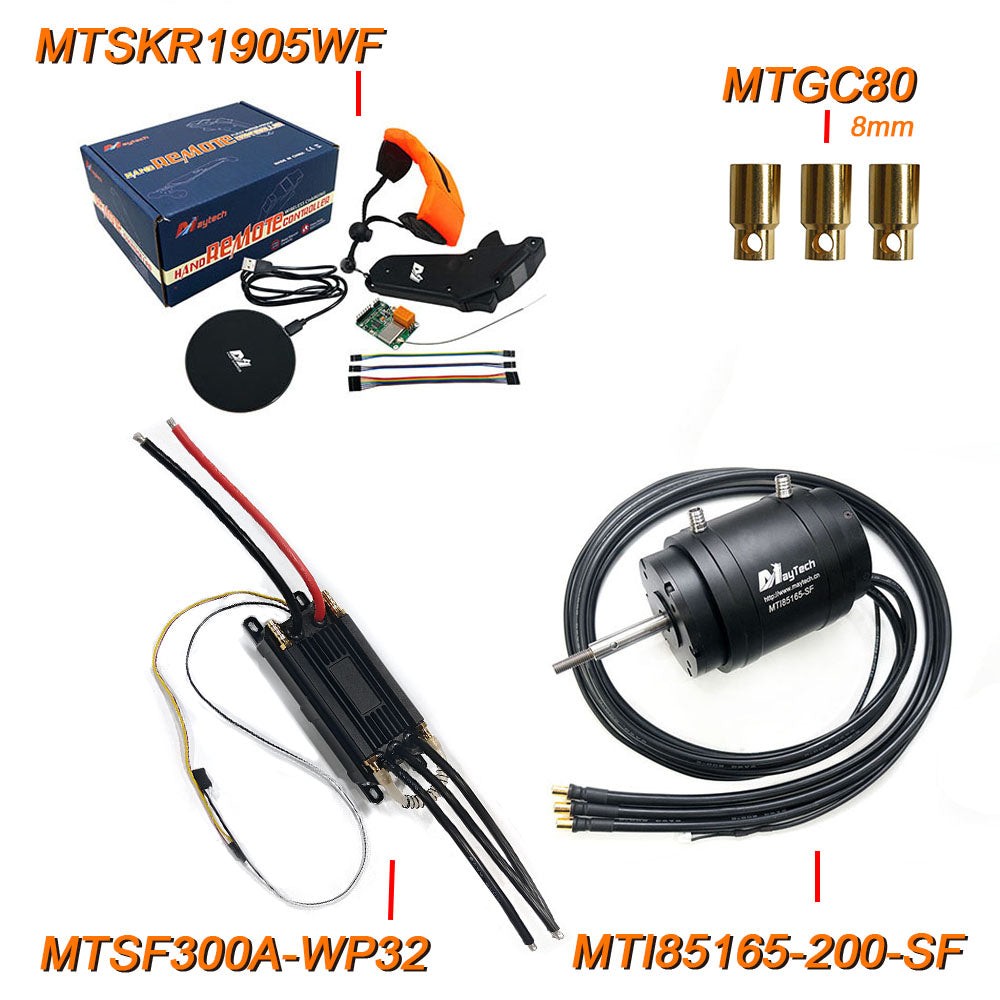

MAYRC Fully Waterproof Combination Set 300A 32BIT Micropprocessor VESC 65162 85165 120116 100KV 120KV 200KV Water-cooled Motor Waterproof Engine

Specification:

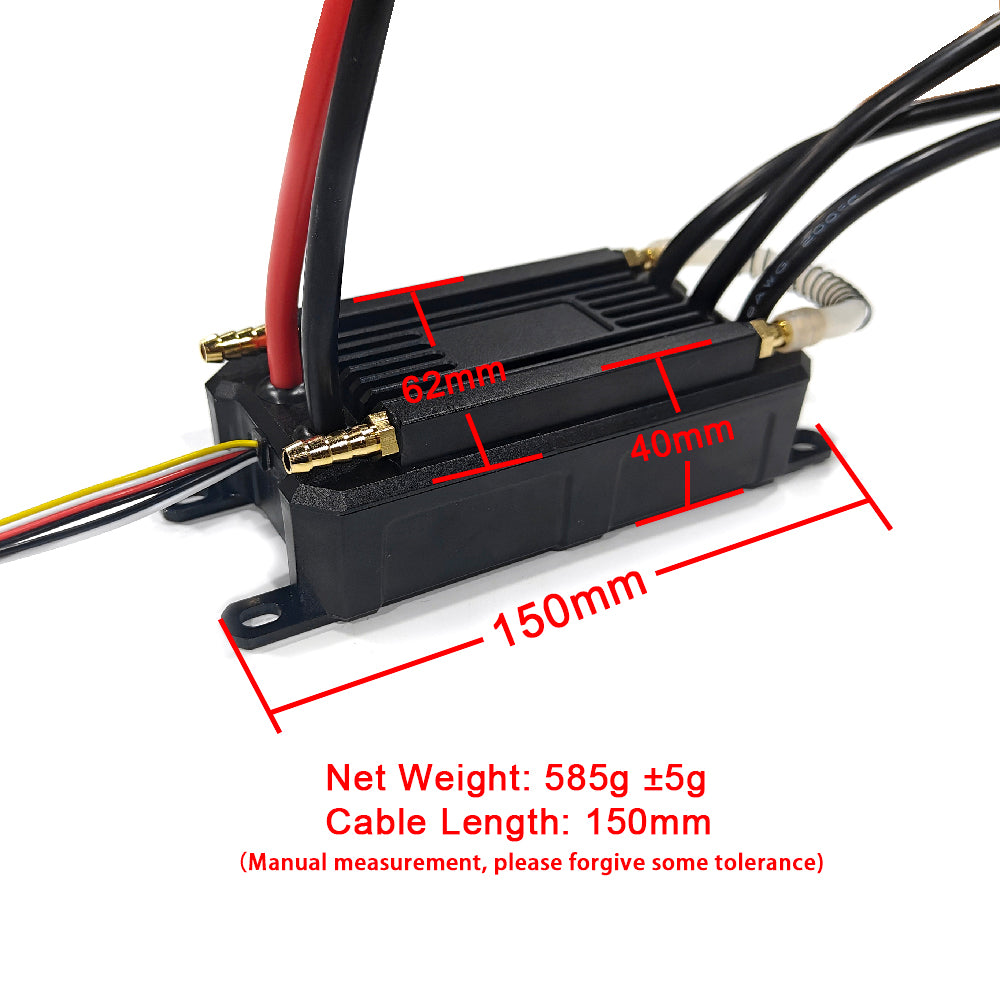

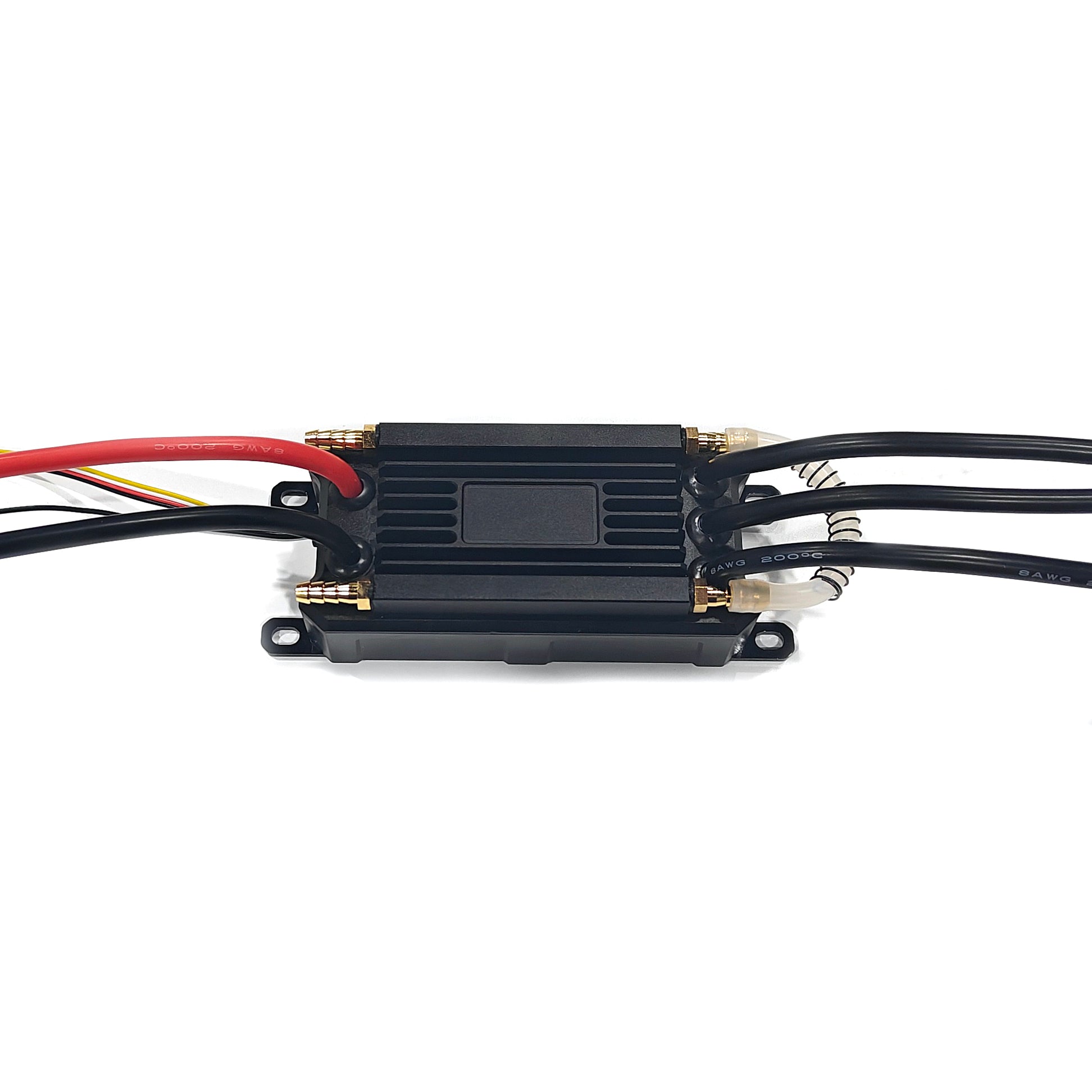

Model 1 ：MTSF300A-WP32
Cont. Current：160A
Max. Current：180A
Volt.：25-60V 6-14S LIPO
Water-cooled：water-proof version IP68
                          Can work in 1 meter deep water;
Size：95*46*23mm
Weight：180g

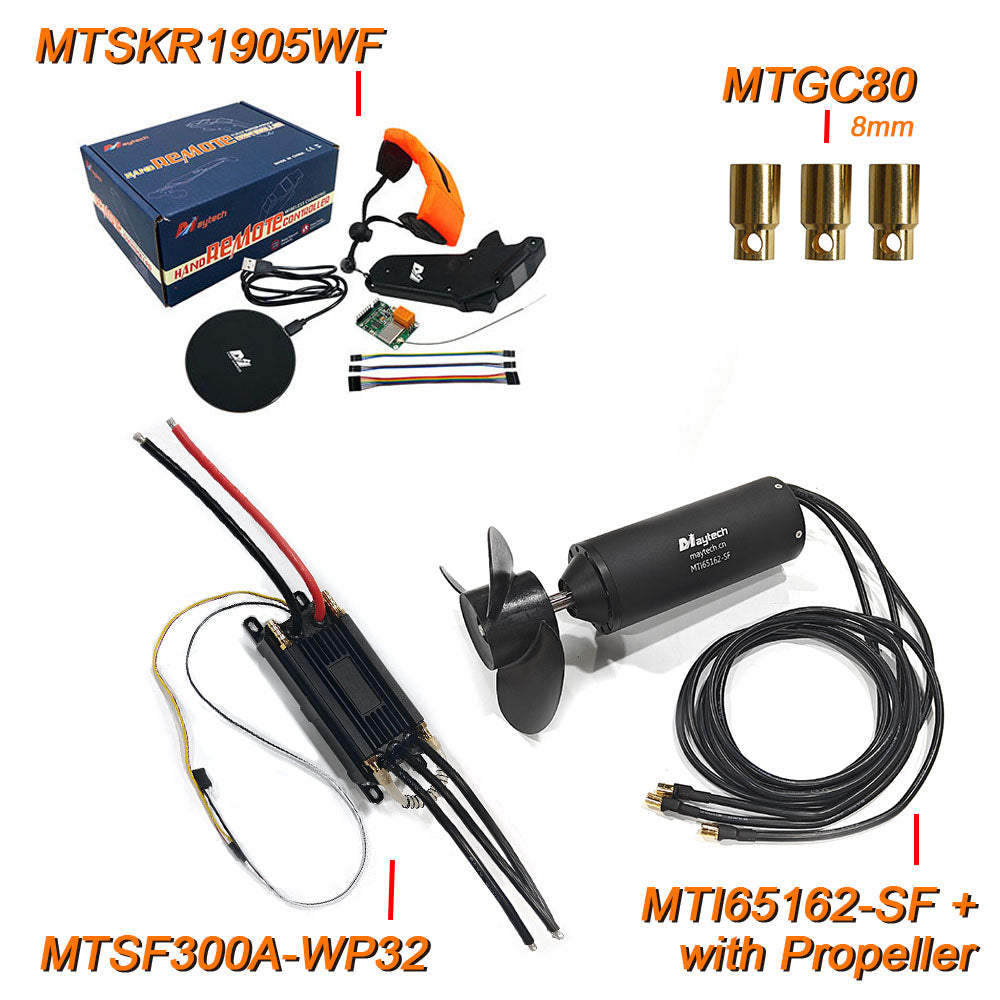

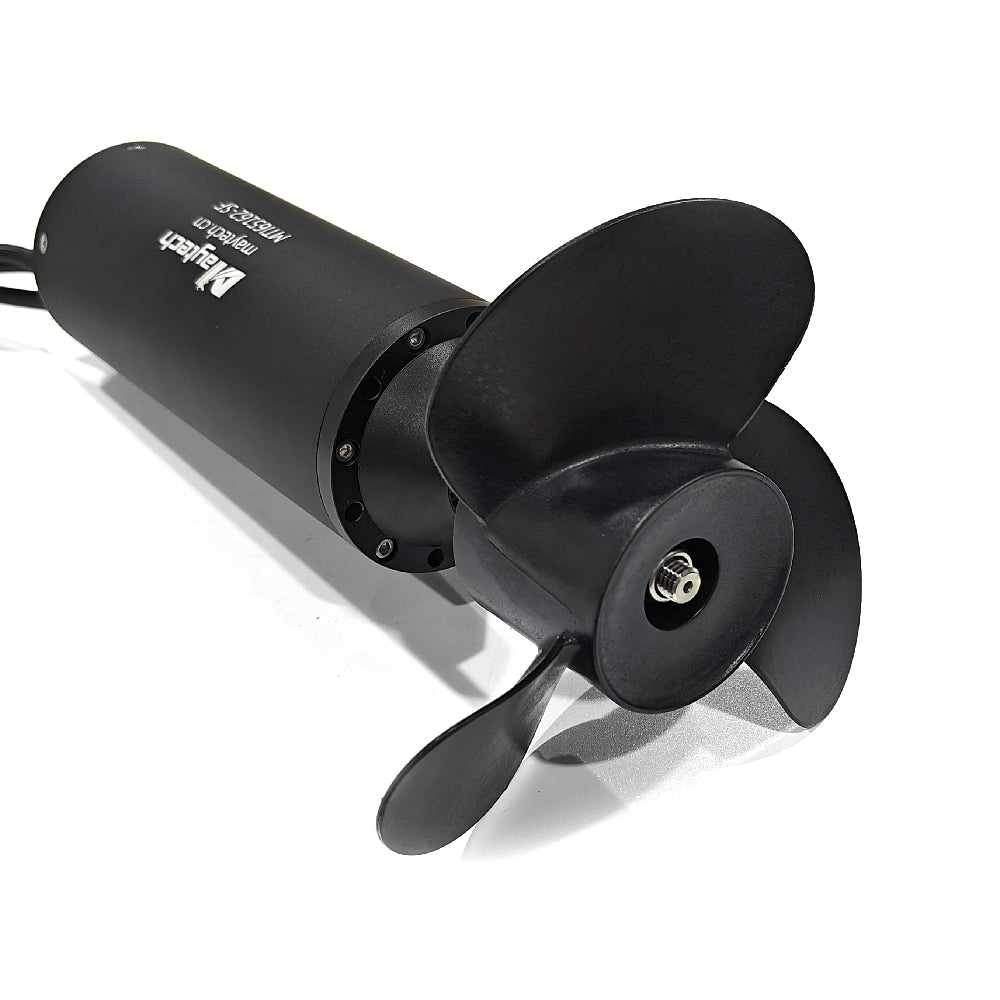

Model 2 ：MTI65162-120-SF Fully water-proof
RPM/V/Max RPM: 120/14300
Idle Current@10V: 1.6A
Rated Current/Max Current (A)：240/310
Working Voltage：25-84V
Rated/Max Torque(N*M)：7/9.0N*M
Max Power(10S)：9.1KW
Winding Turns/Construction：4T/18N/6P
Motor&Shaft Size(mm):Φ65x 162mm&12mm
Net Weight (kg)：2.1

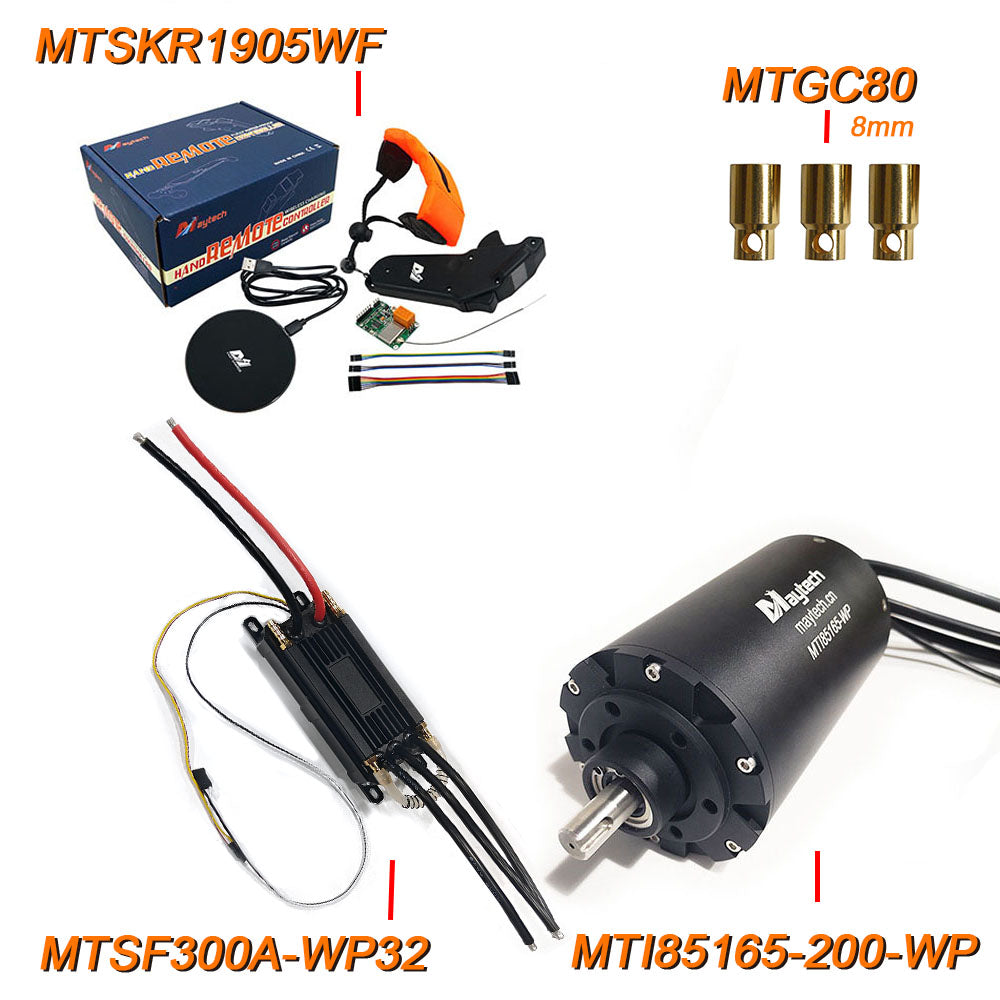

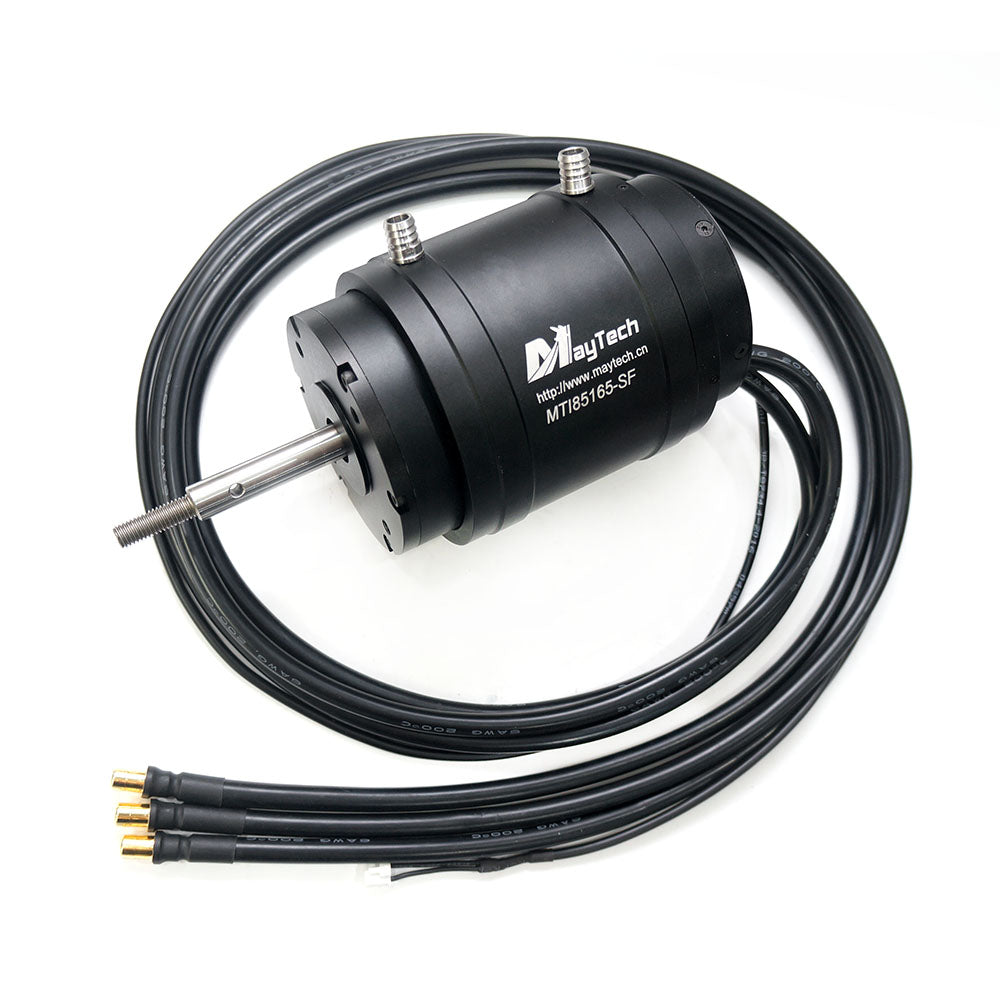

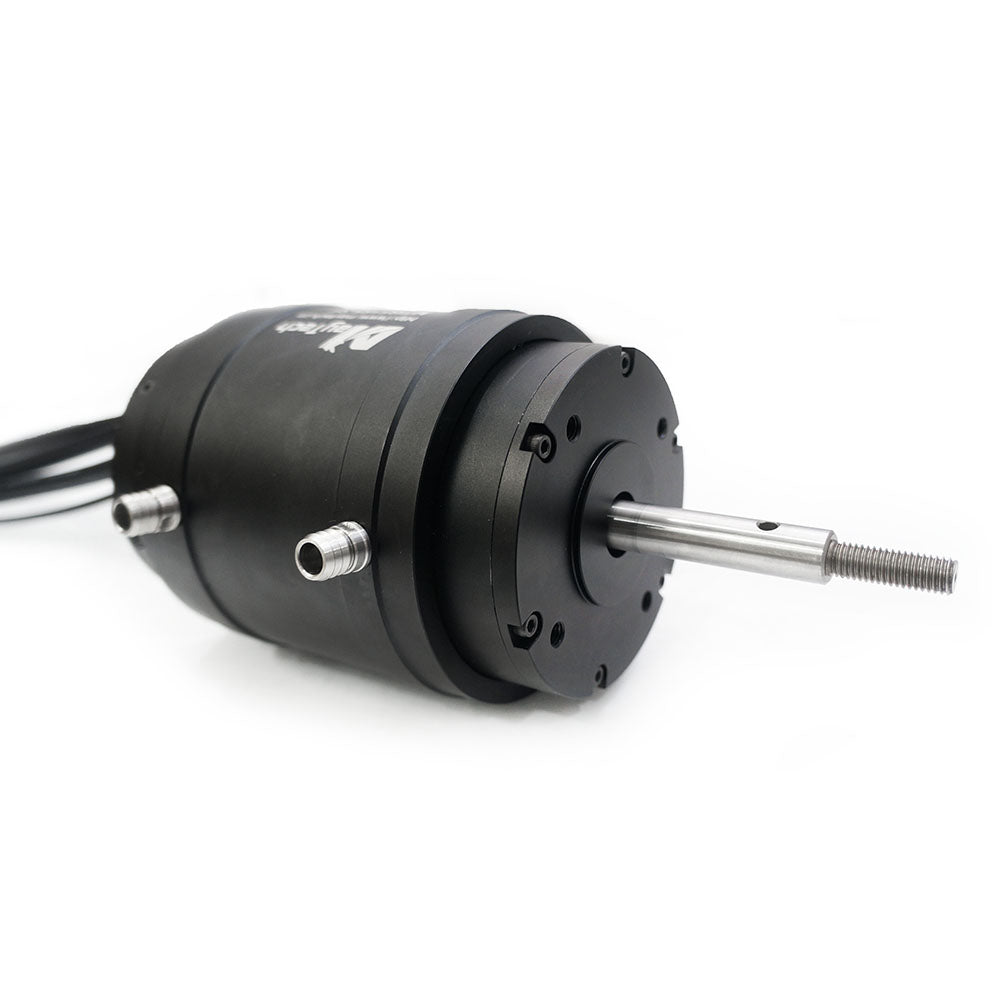

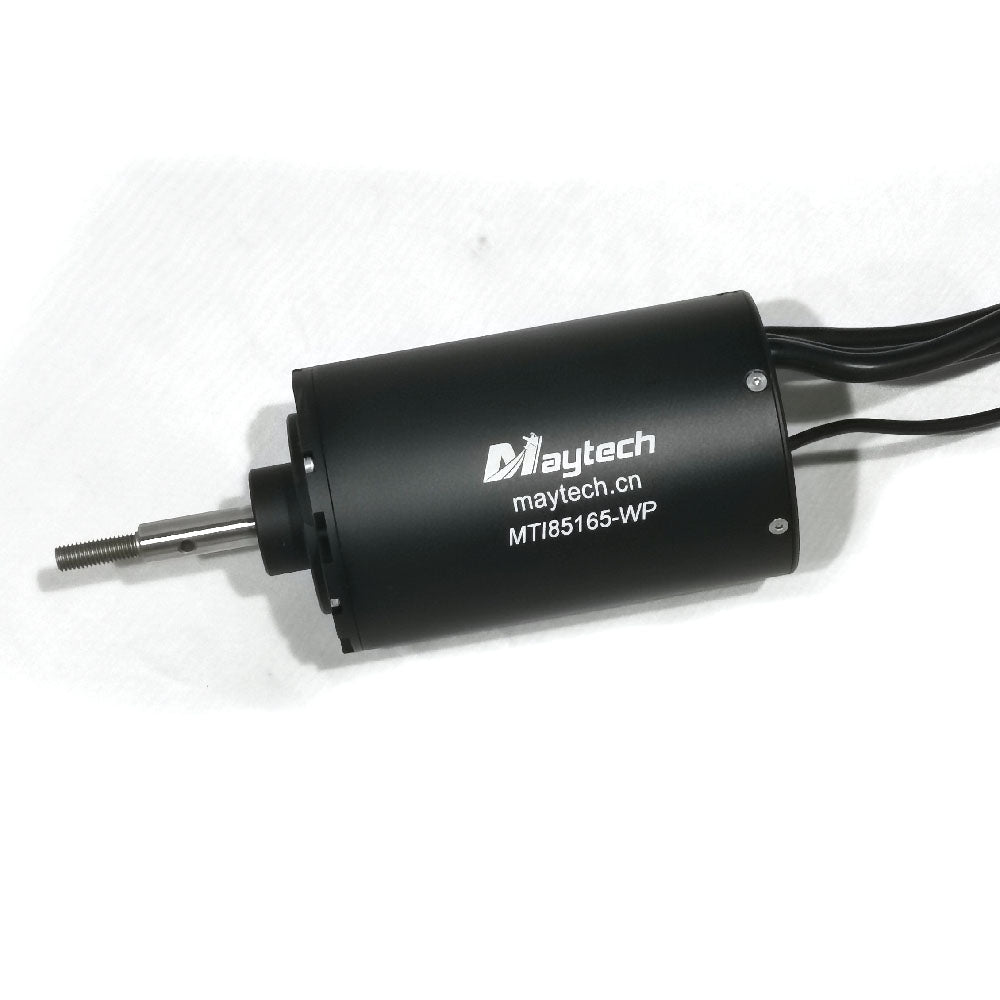

Model 3：MTI85165-200-SF(Water-cooling)/MTI85165-200-WP(Fully water-proof)
RPM/V/Max RPM：200/12096
Idle Current@10V：2.1A
Rated Current/Max Current (A)：190A/300A
Working Voltage：50-84V
Rated/Max Torque(N*M)：17.5/21.5N.M
Max Power(10S)：10.5KW
Winding Turns/Construction：7T/12N/10P
Motor&Shaft Size(mm)：Φ85x134mm&12mm
Net Weight (kg)：2.8
Waterproof version: by water, the motor need to work directly in water for cooling
Watercooled version: through cooling tube by water pressure or water pump
Shaft: Keyway Shaft (waterproof version); Screw Shaft (watercooled version)

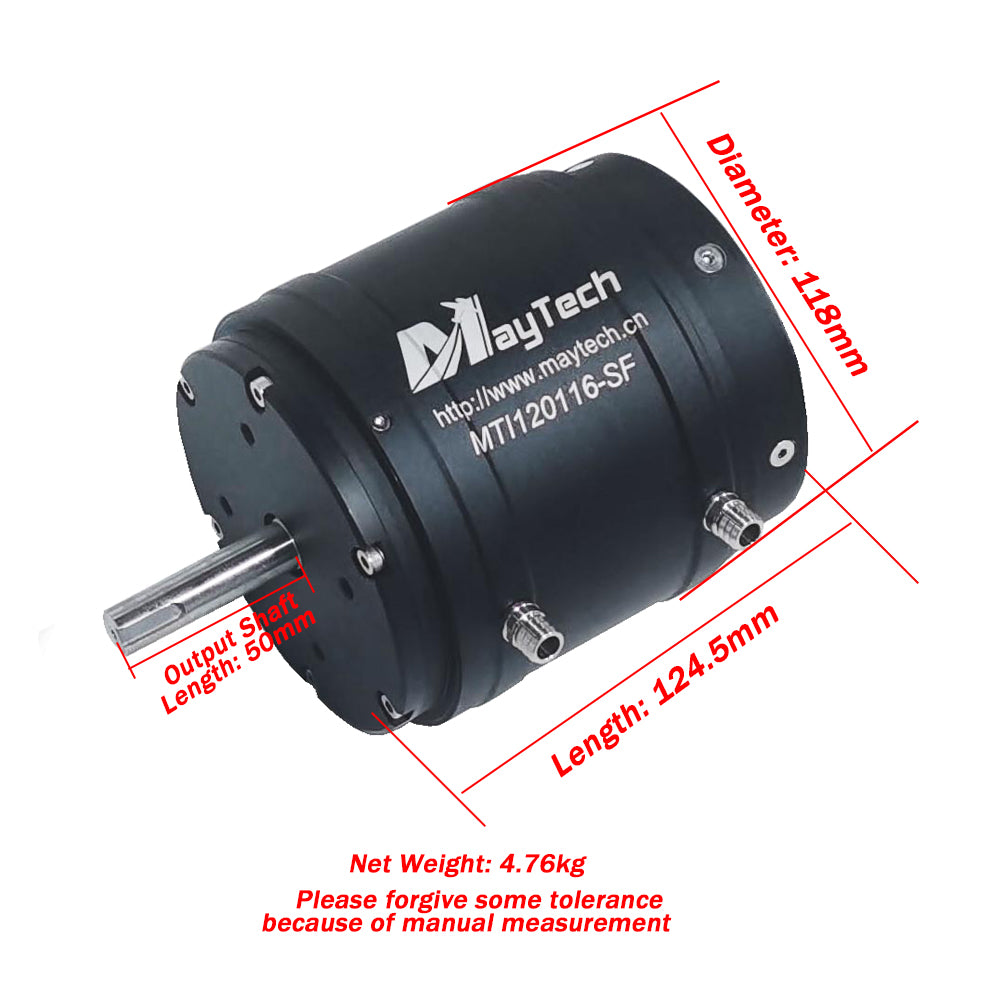

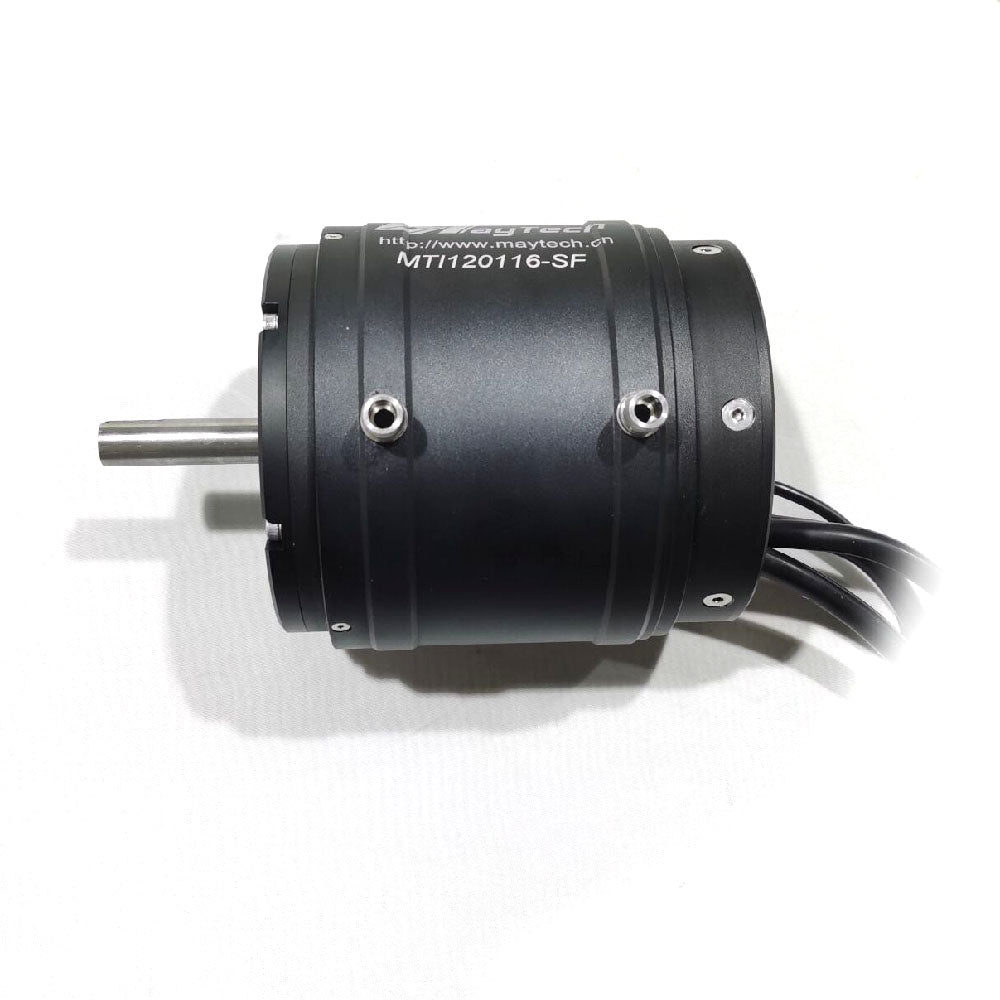

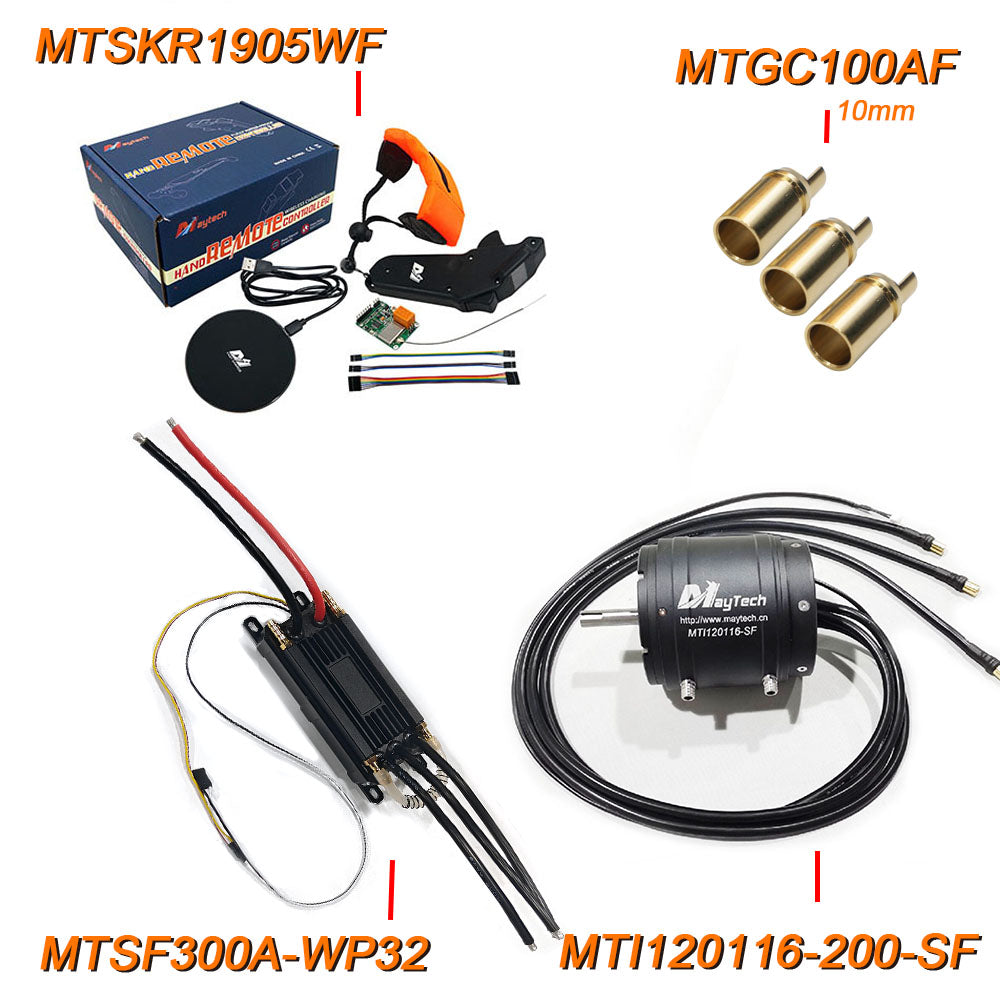

Model 4：MTI120116-200-SF(Water-cooling）
RPM/V/Max RPM: 200/13440
Idle Current@10V: 2.8A
Rated Current/Max Current(A): 300A/380A
Working Voltage: 50-84V
Rated/Max Torque(N*M): 13.6/20.6 N.m
Max Power(10S): 18.8KW
Winding Turns/Construction:3.5T/12N/10P
Motor&Shaft Size(mm)：Φ118x 116mm&D15mm
Net Weight (kg)：4.4

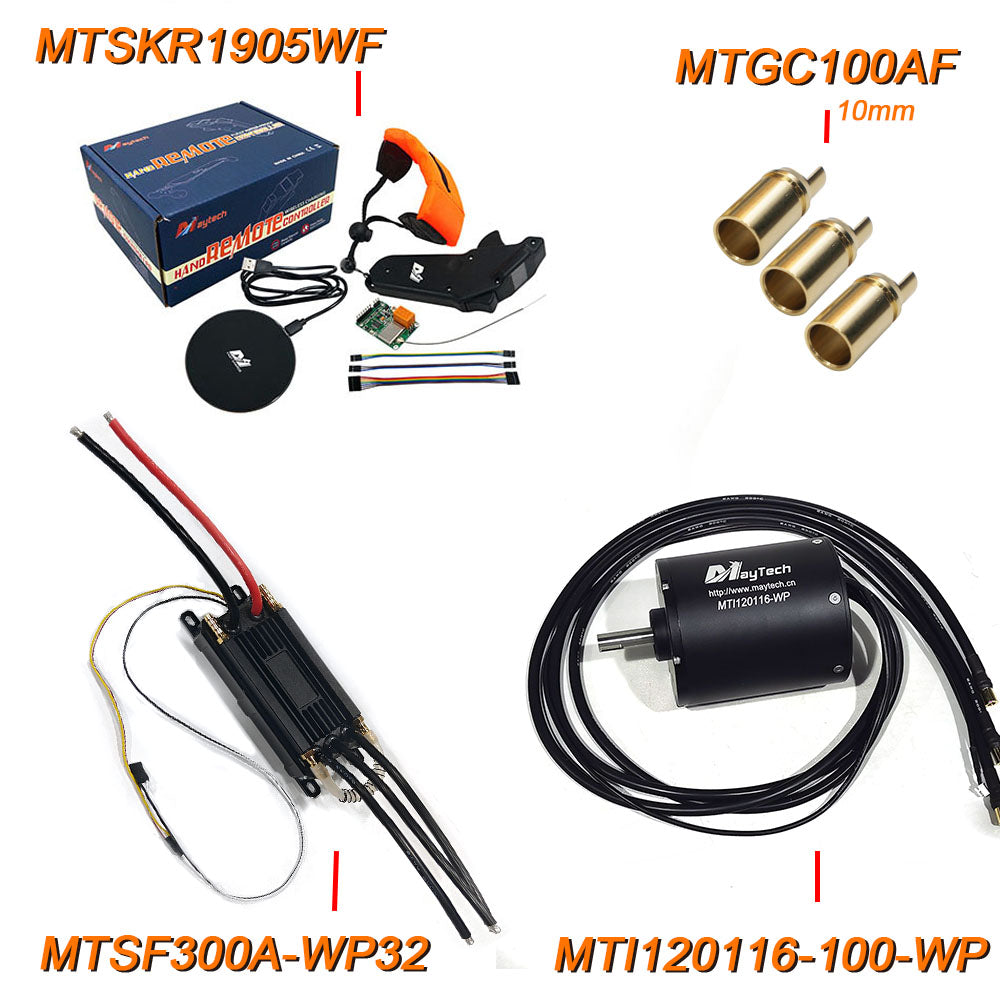

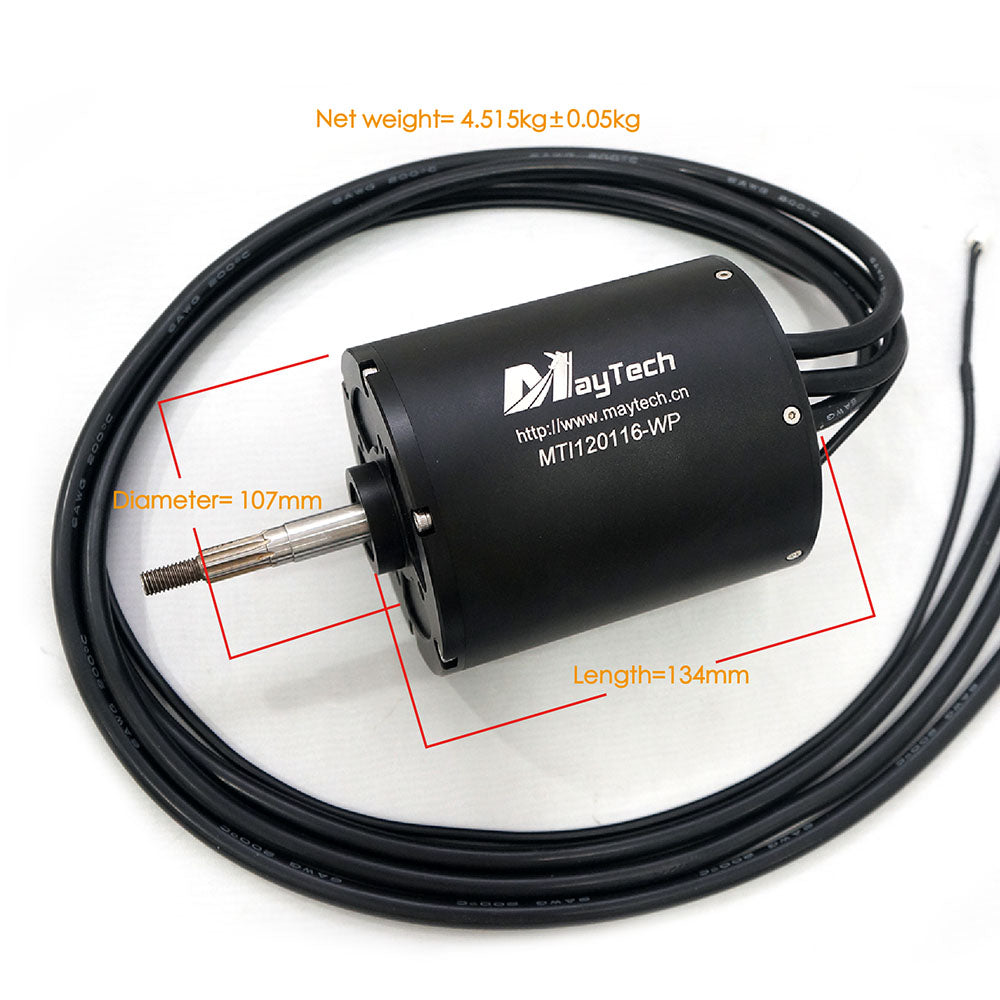

Model 5：MTI120116-100-WP(Fully water-proof)
RPM/V/Max RPM: 100/13440
Idle Current@10V: 2.8A
Rated Current/Max Current(A): 300A/380A
Working Voltage: 50-84V
Rated/Max Torque(N*M): 13.6/20.6 N.m
Max Power(10S): 18.8KW
Winding Turns/Construction:3.5T/12N/10P
Motor&Shaft Size(mm)：Φ107x 125mm&D15mm
Net Weight (kg)：4.4

Model 6：MTGC80（8mm Female plug）

Model 7：MTGC100AF（10mm Female plug）

MTSF300A-WP32 Main Features：
▶ 32BIT Micropprocessor

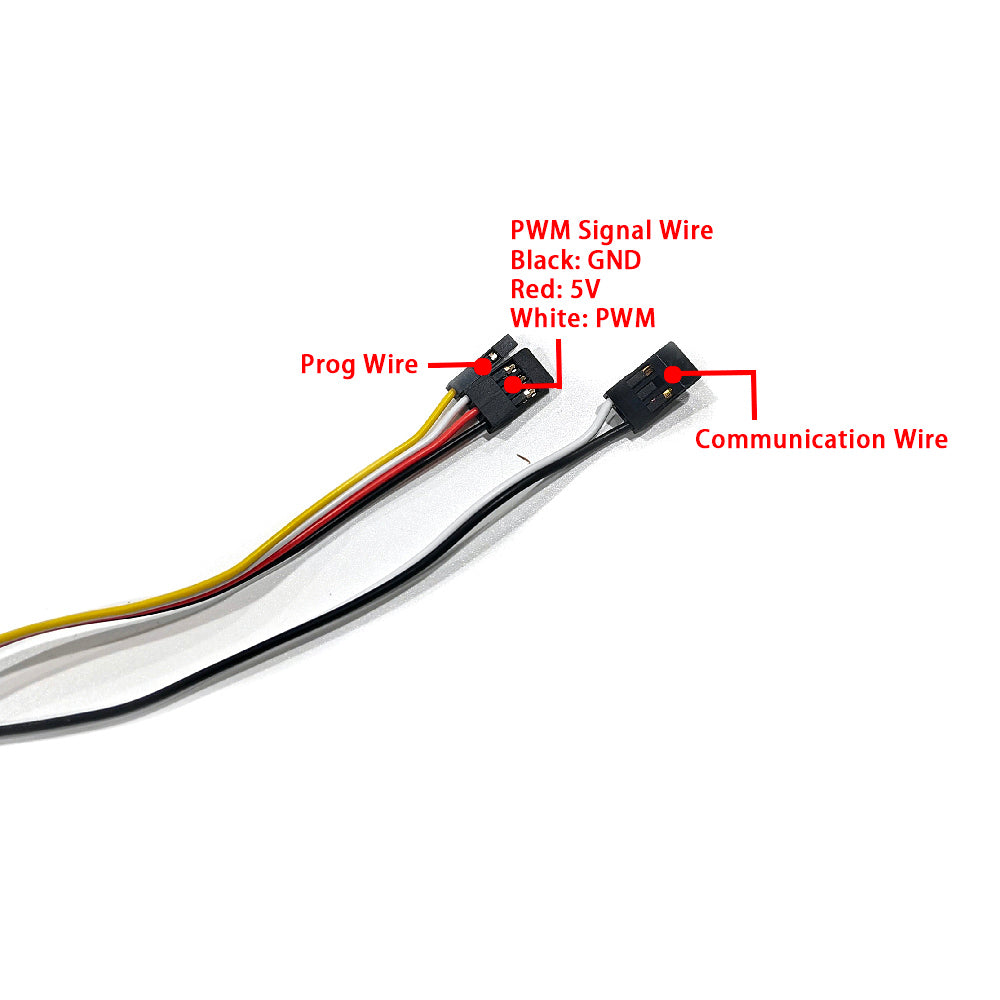

▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ 160A-300A Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶ MTSF105AA32 with BEC output 6.0,7.4,8.4V adjustable /8A
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Model 8:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad

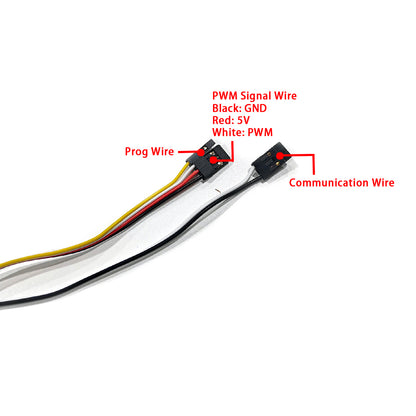

MTSF300A-WP32

MTI65162-SF MotorTest Datasheet

MTI85165-SF &MTI85165-WP MotorTest Datasheet

MTI120116-SF & MTI120116-WP MotorTest Datasheet

MTSKR1905WF remote control
