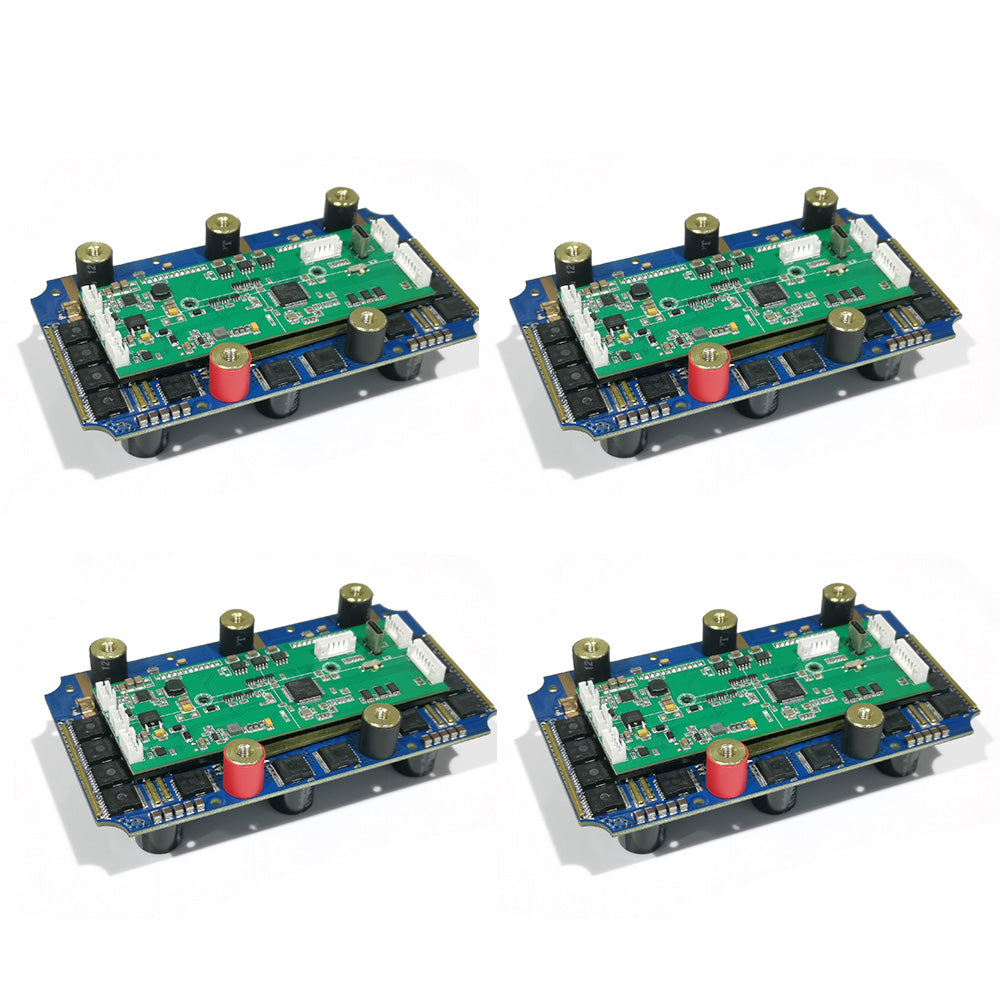

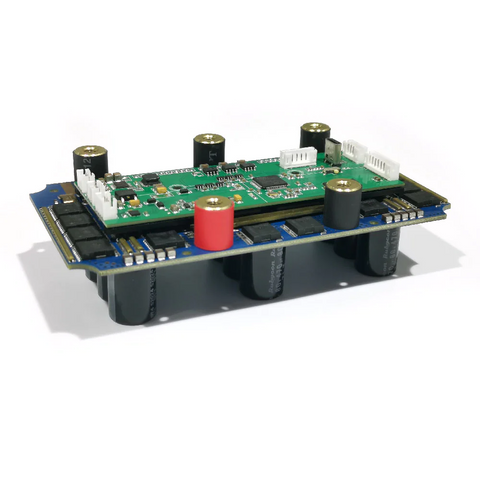

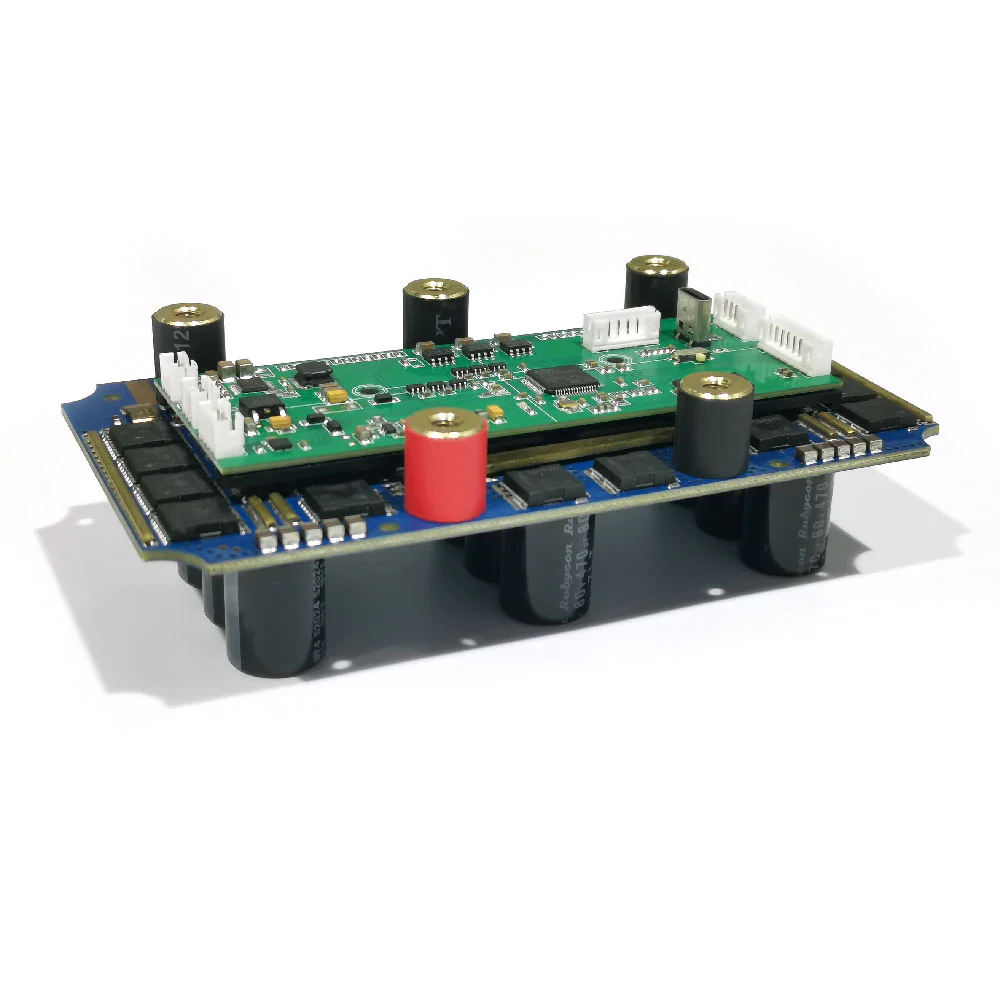

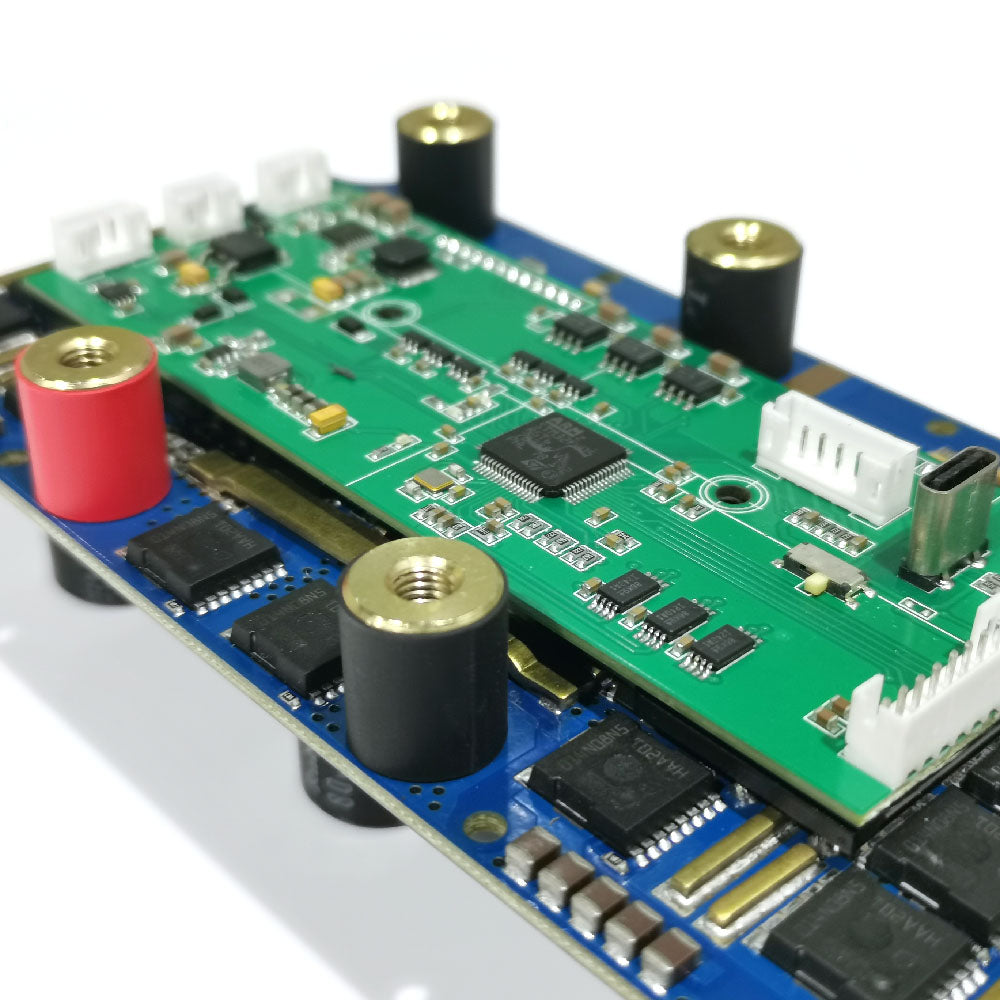

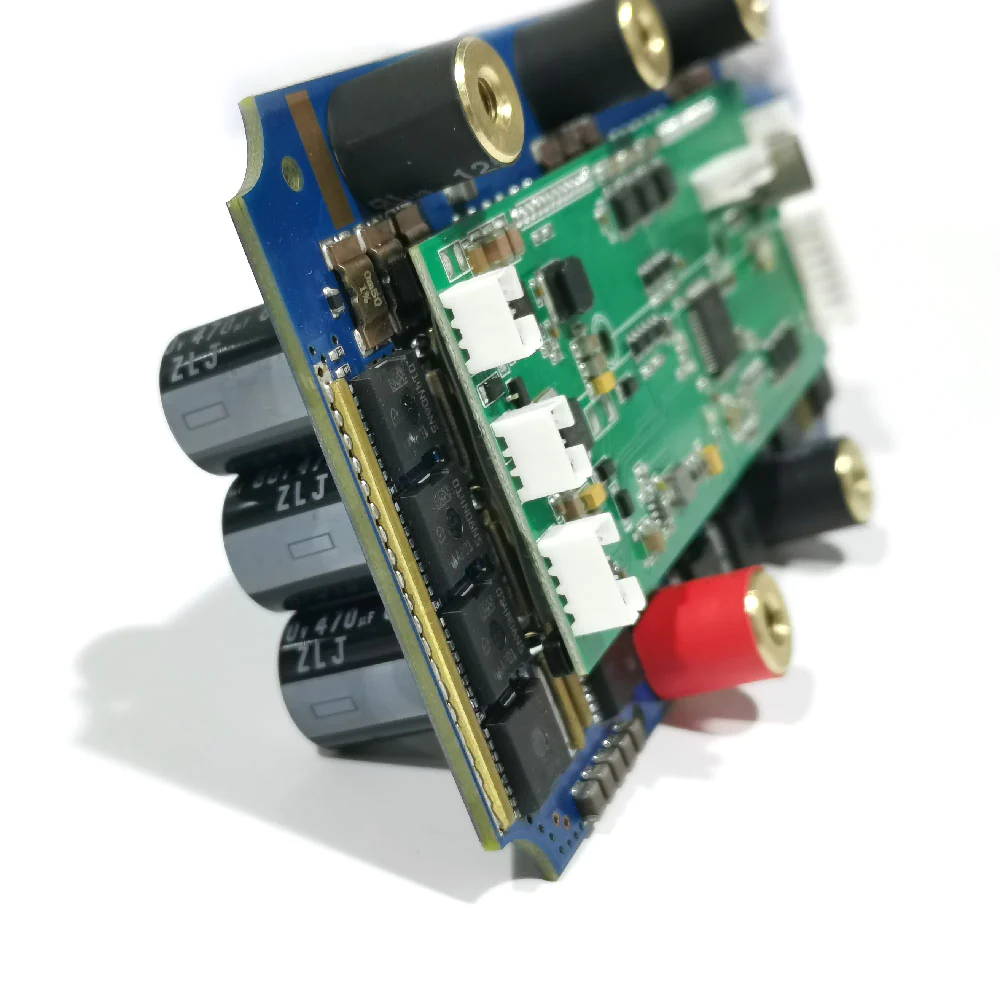

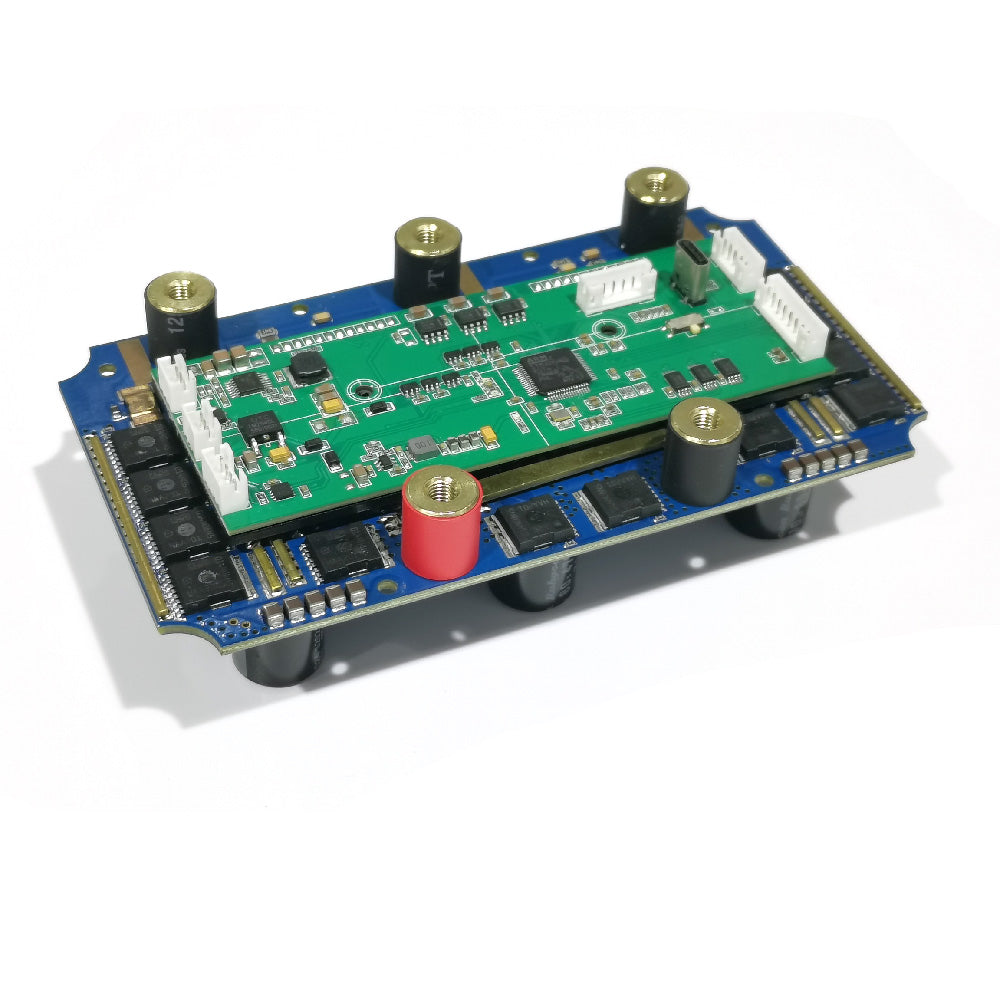

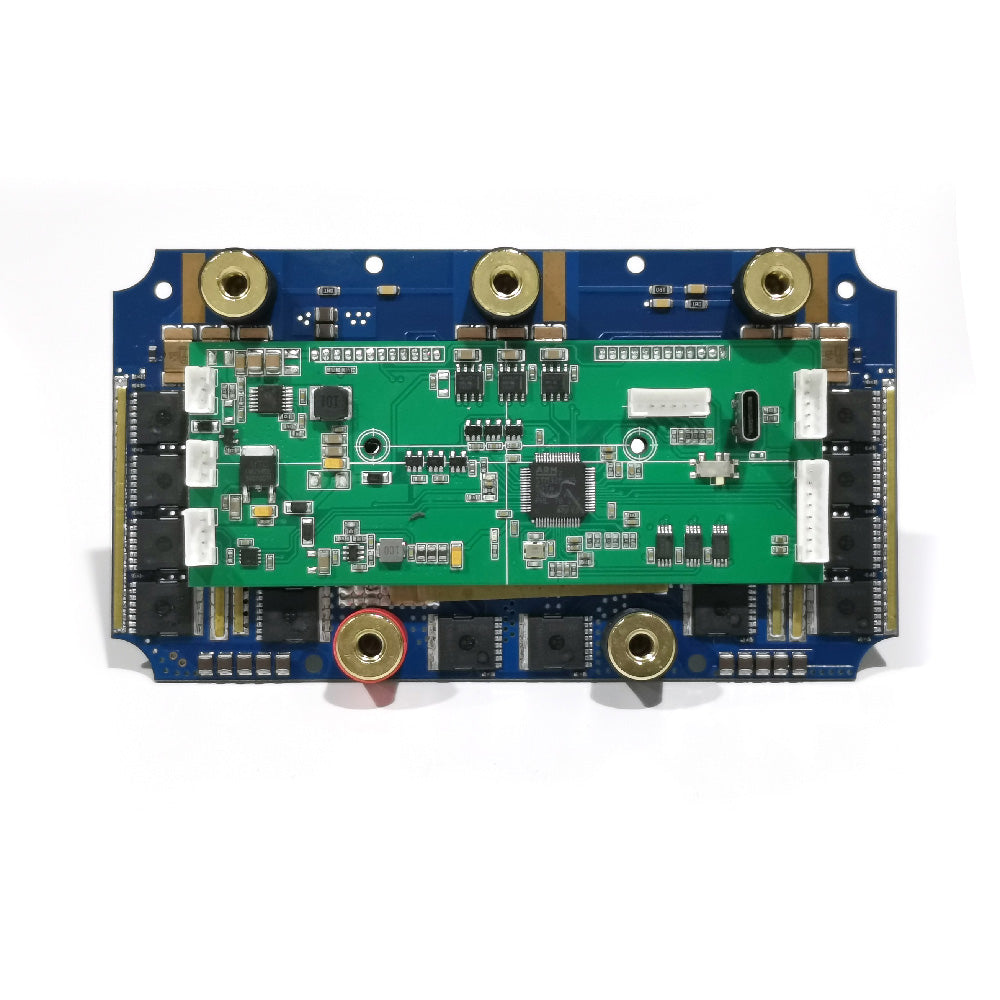

MAYRC 300A V7.5 High voltage VESCTOOL Compatible Speed Controller for Surfboard Underwater Scooter

Specification:

Application:

Electric car, ev car, electric surfboard, electric motorcycle, electric foil, hydrofoil, motorized boat rc boat, agv car, go cart, unmanned aerial vehicle, unmanned drone, underwater scooter, efoil, robots, etc.

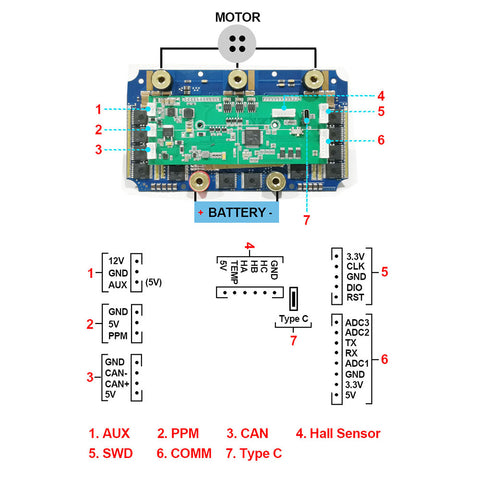

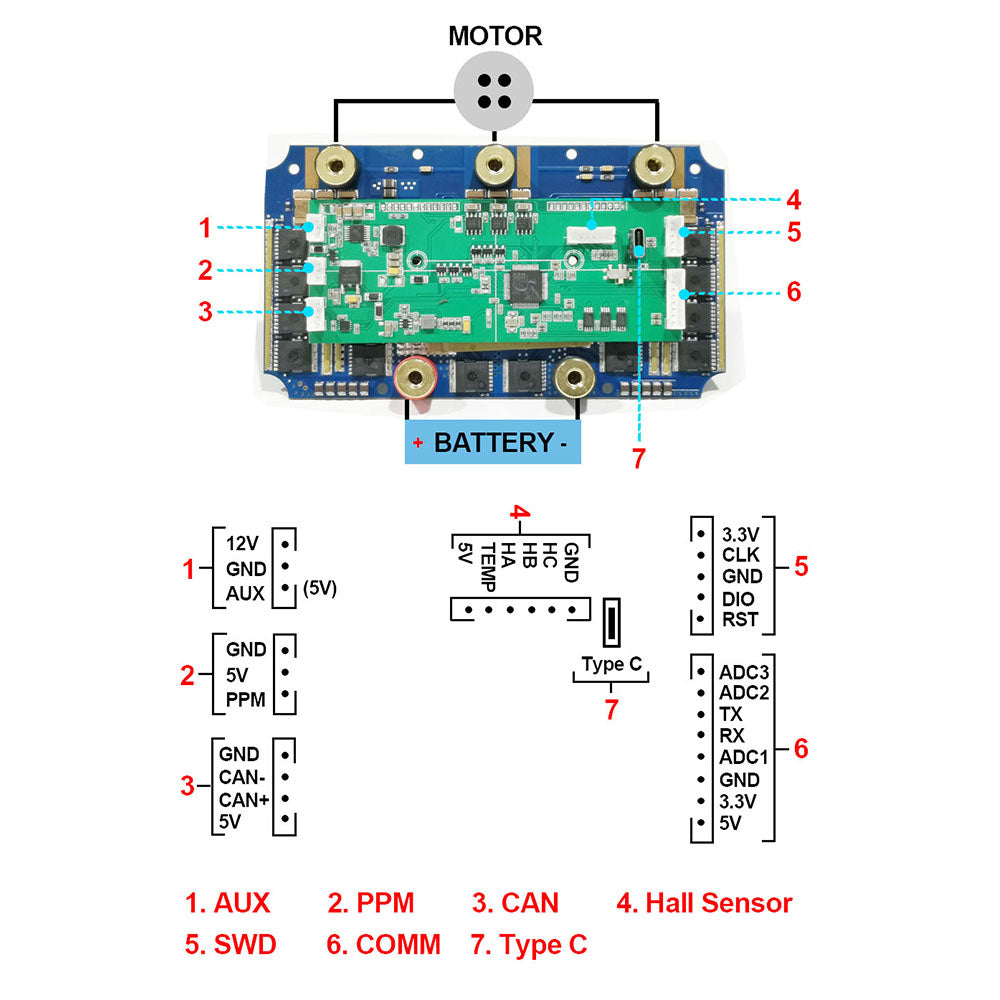

Ports definitions:

1. AUX port to supply 12V and 5V to external device;
2. PPM port to connect PPM transceivers; Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
3. CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a VESC array.
4. Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
5. SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
6. COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!

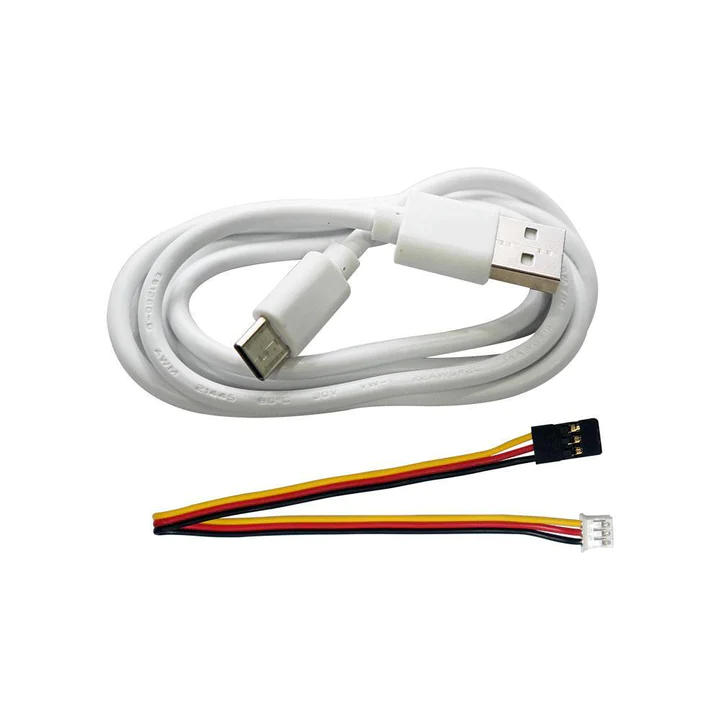

7. USB port for programming.

Features:

1：This new controller can work to highest 75V voltage, can use for electric skateboard, surfboard, motorcycle, ATV, etc., fixed the problem of high voltage and compatible with VESC_TOOL that most controller can't do in the current market.
2：Compatible with VESC_TOOL, programmable;
3：Use High voltage components, more stable, better performance;
4：With 24pcs mosfets;
5：With Great heat dissipation for high voltage and high current applications;
6：Compatible with brushed and brushless Motor, intrunner and outrunner motors；
7：Sensored or Sensorless operation + Hybrid mode；
8：Adjustable Forward/Backward/Brake；
9：Regenerative Braking Function；
10：Configurable RPM, Current, Voltage and Power limits；
11：Support PPM, Analog (ADC), UART, Canbus input；
12：Support BLDC square wave mode control and FOC sine wave mode；
13：Communication ports: USB, CAN, UART.

Notice：
