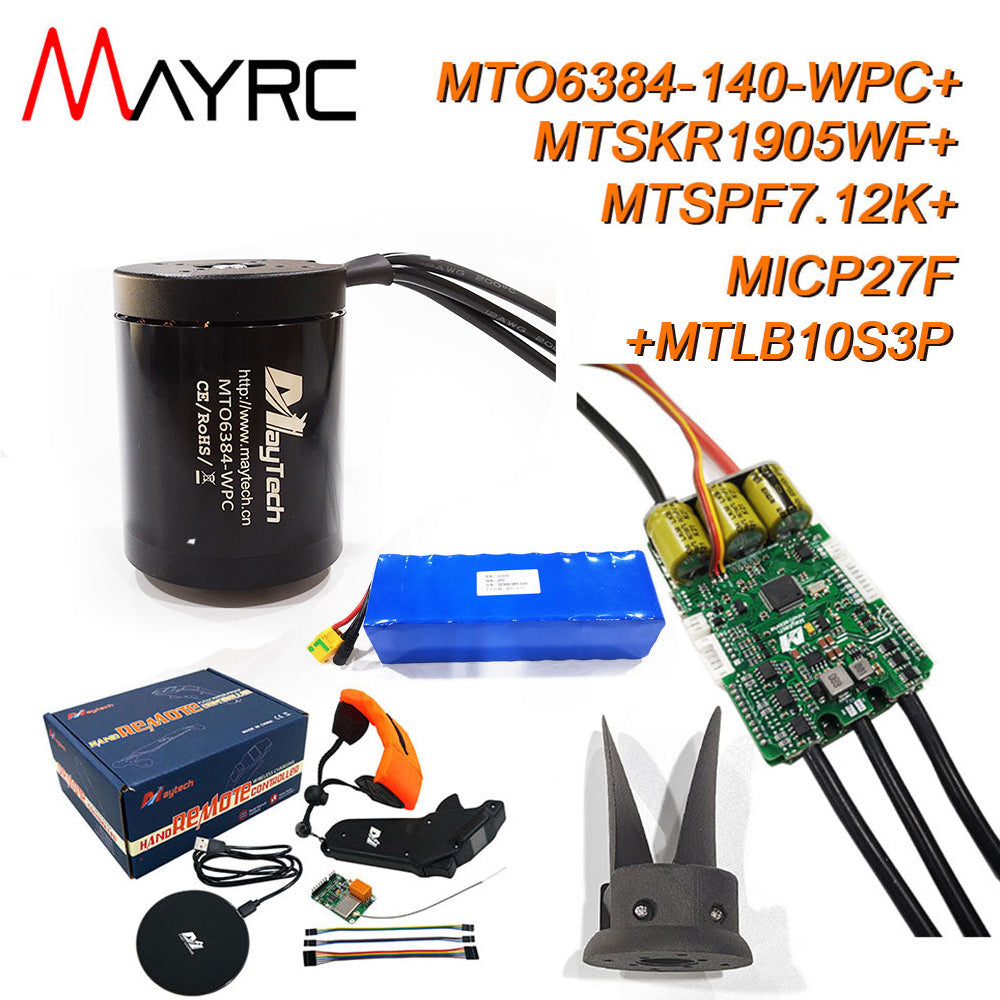

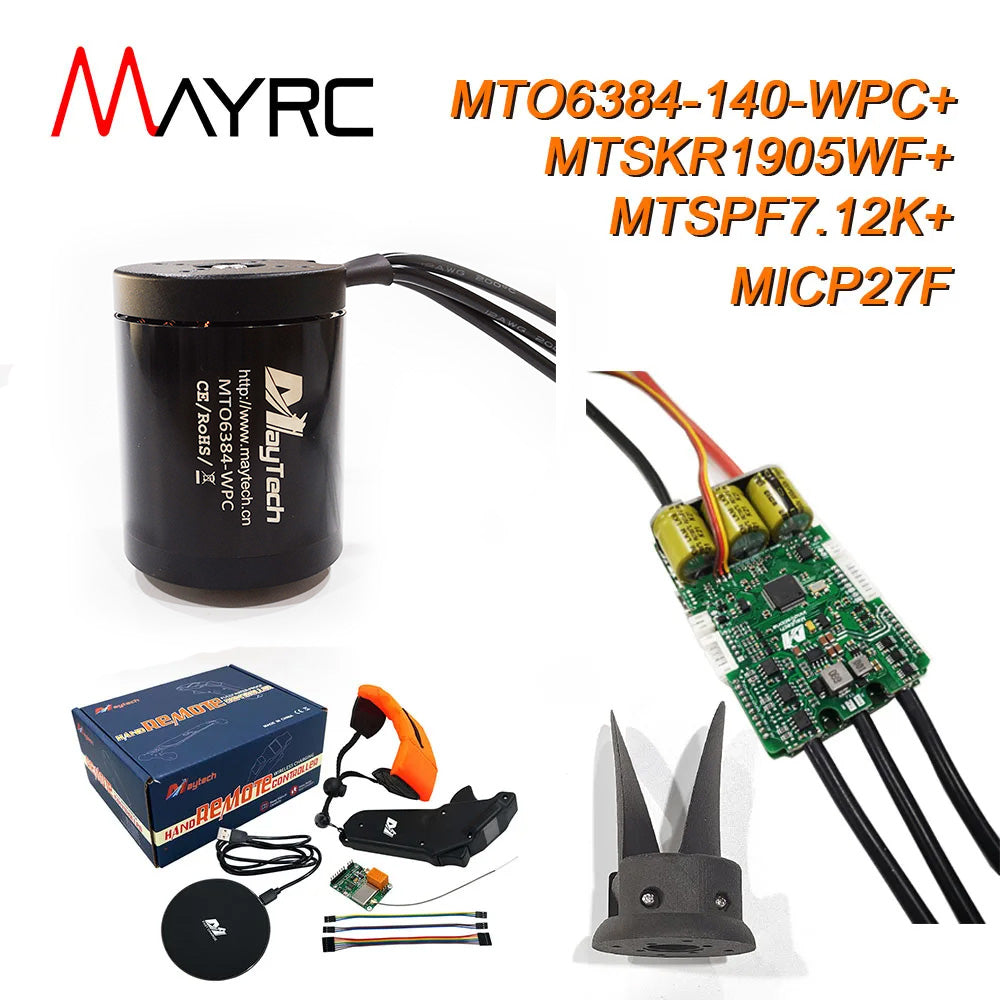

MAYRC Kit 6384 140KV Waterproof Brushless Motor 200A Speed Controller ESC and IP68 Wireless Remote Controller
MAYRC Kit 6384 140KV Waterproof Brushless Motor 200A Speed Controller ESC and IP68 Wireless Remote Controller
Couldn't load pickup availability
MAYRC Kit 6384 140KV Waterproof Brushless Motor 200A Speed Controller ESC and IP68 Wireless Remote Controller
Specification:

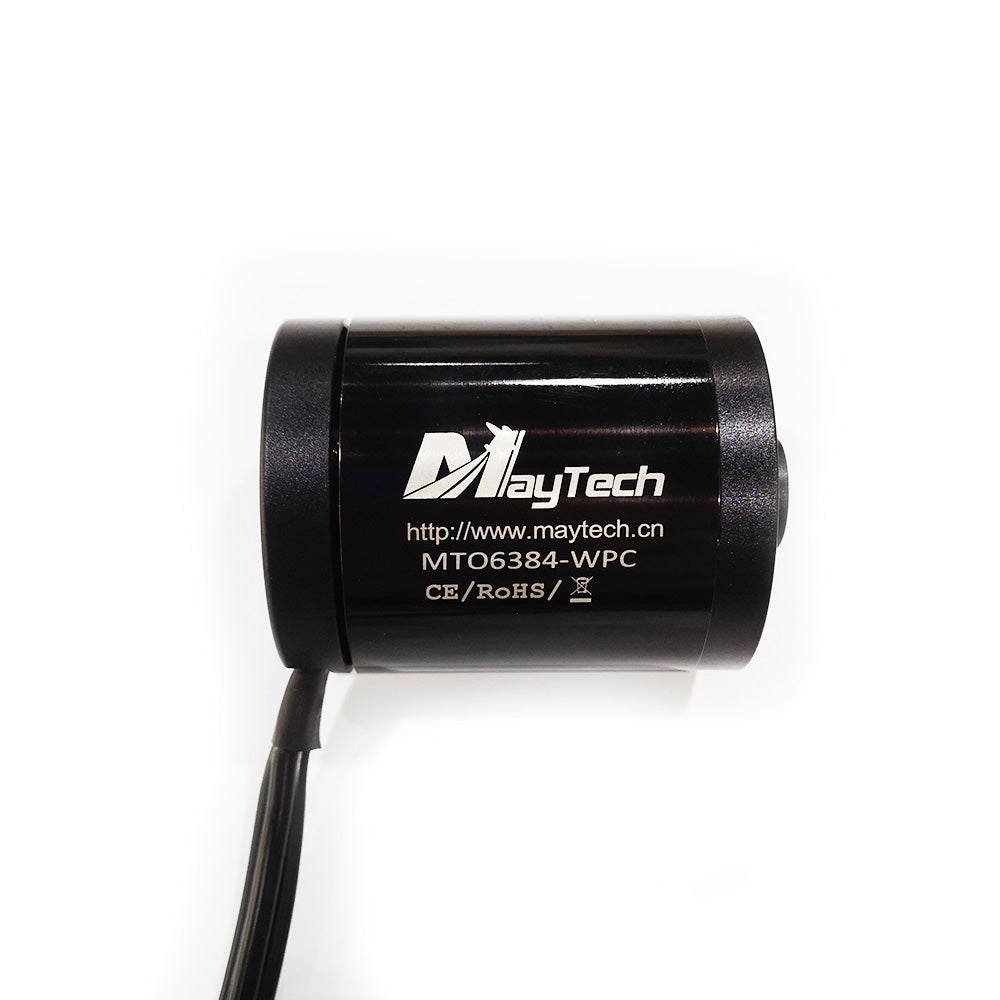

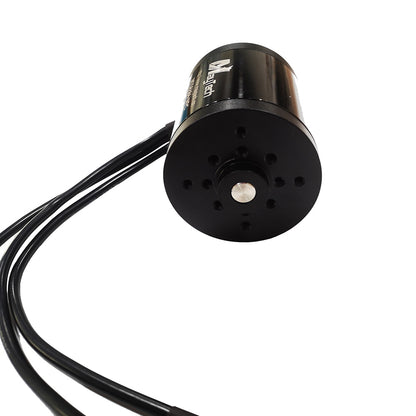

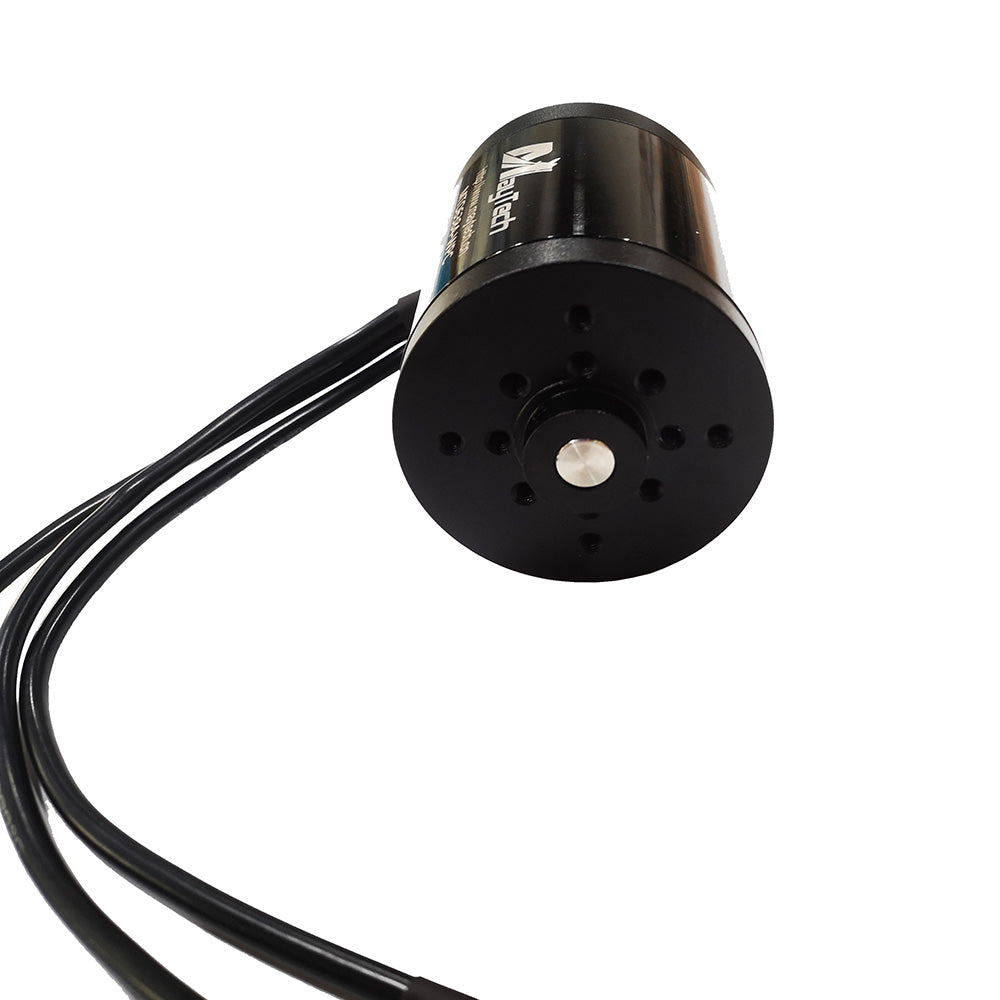

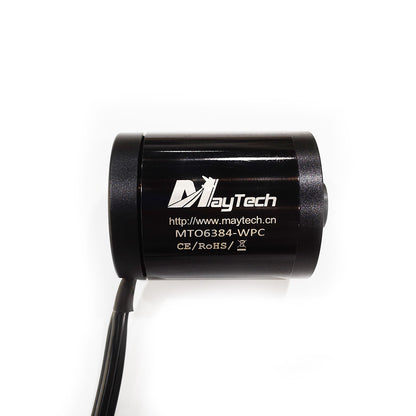

| Model 1. | MTO6384-140-WPC |
| RPM/V/Max RPM | 150/8000 |
| Idle Current @10V |
0.8A |
| Rated Current/Max Current (A) | 70A/100A |
| Working Voltage |
20-50V |
| Rated/ Max Torque(N*M) |
4/8.8N.m |
| Max Power (10S) |
5KW |
| Winding Turns/Construction |
12N/14P |

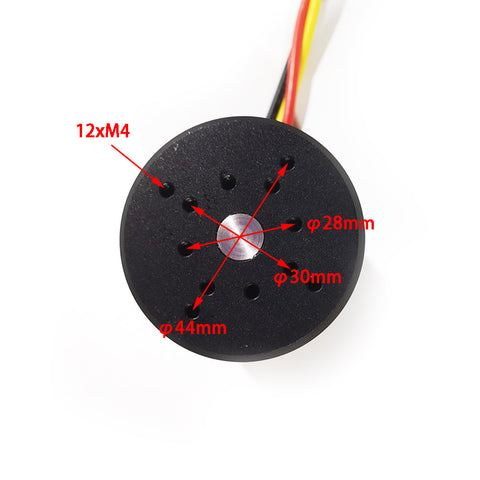

| Motor& Shaft Size(mm) |
63x84mm |
| Net Weight (kg) |
0.93 |
| Model 2： | MTSPF7.12K |
| With Aluminum Case： | No |
| Cont. Current： | 200A |
| Input Volt.： | 75V |
| Hardware： | Based on V7.5 |
| Firmware： | Upgradable |
| Software： | VESCTOOL Compatible |
| FOC： | YES; Better than V4.12 |
| Compatible motor： | Sensor or sensorless |
| Weight： | 300g |
| Model 3： | MTSKR1905WF |
| Application: |
Mountainboard, Esurf, Efoil,boat, etc. Max Voltage detection range: 5-80V ±5% Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay |
| Switch Max current: | 3A; |
| Transistor switch max current: | 2A; VESC communication protocol |
| Fully Waterproof: | Yes |
| Display Screen: | Yes |
| Display Parameters: | Voltage, remote & battery power, signal strength, distance,RPM |
| Frequency: | 2.4GHZ |
| Mode: | Esk8/Esurf |
| Wireless Charging: | Yes |

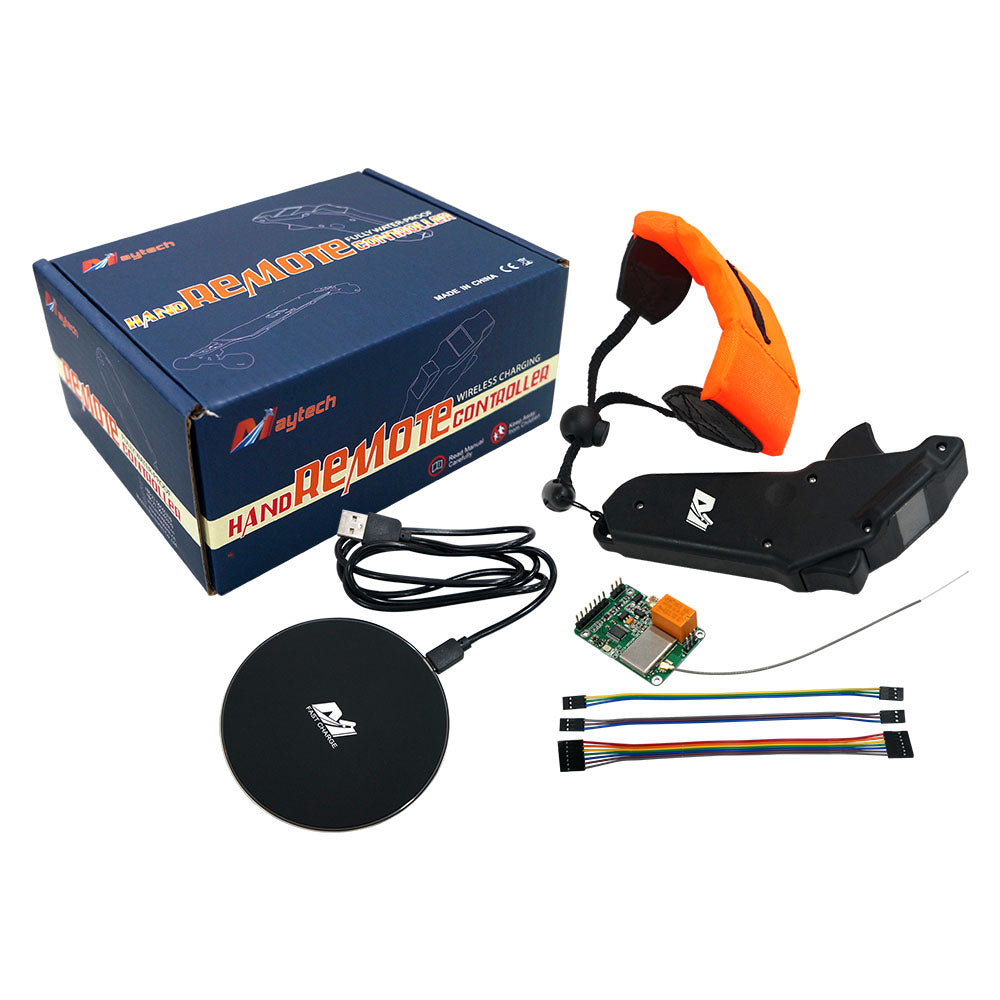

| Accessories: | Receiver, strape, 3pcs Dupont cable, Wireless charging pad |

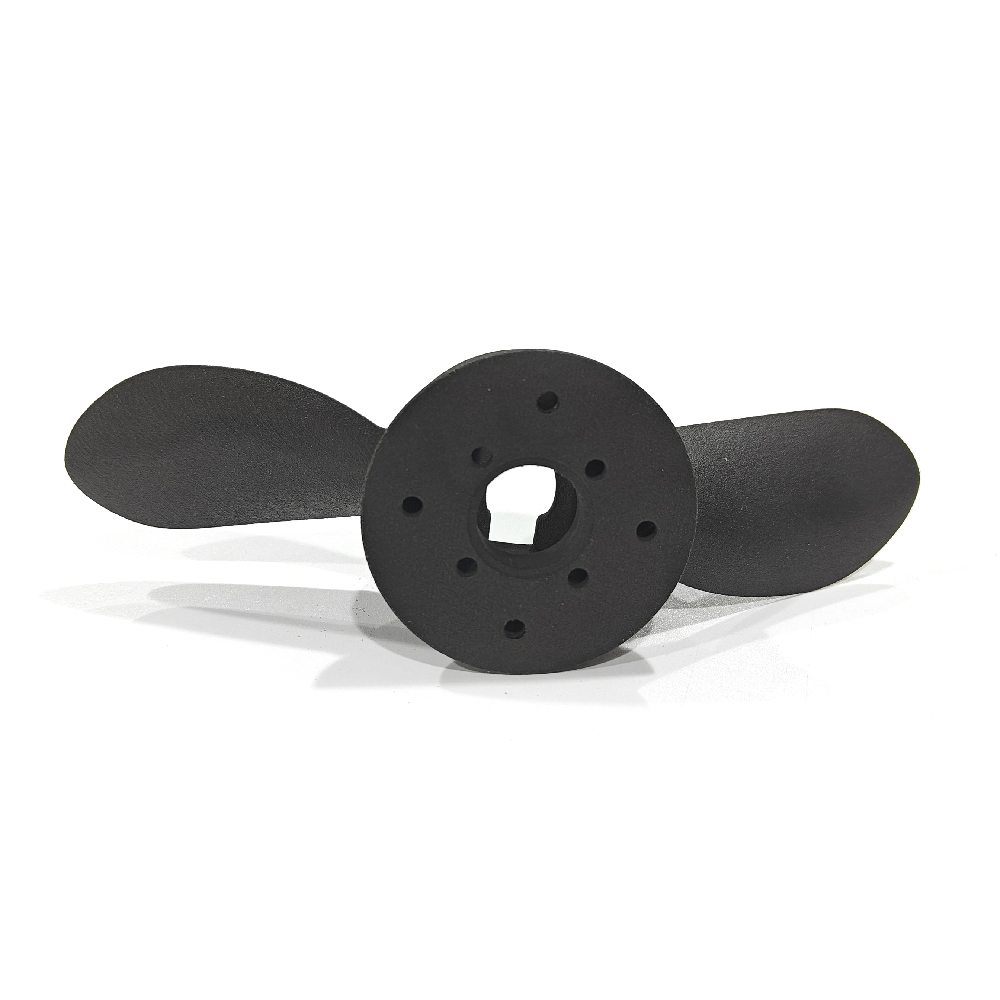

| Model 4： | MICP27F |
| Blades: | 2 blades |
| Type: | 3D printed foling prop |
| Size: | as picture |
| Compatible Motor: | MTO6374-150-WPC and MTO6384-130-WPC |
| Application: | Foil assist system, electric outboard, wing foil, retrofit efoil, sup foil, sup board, etc. |
Application：
Foil surfing, Jetsurf , electric outboard, electric skateboard, Kayak, electric hydrofoil, Electric Jet Board, RC boats, baitboats, Fishing boat ,underwater robots, water sports, Underwater Remotely Operated Vehicles, Subsea Robots, etc.
Customized Service：
Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com
Warranty Service:
1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
