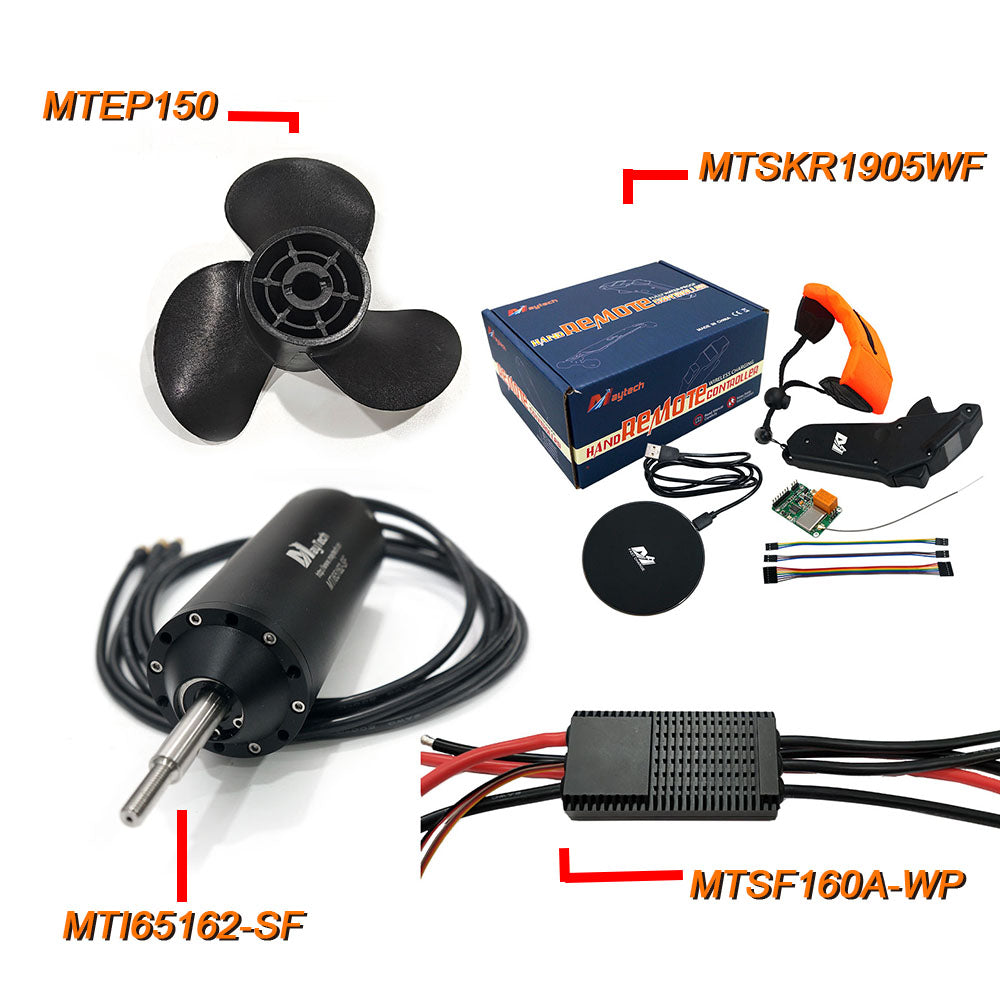

In Stock MAYRC Kit 160A Water-proof ESC 65162 120KV Brushelss Motor with Propeller and Remote Controller for E Foil Boards
In Stock MAYRC Kit 160A Water-proof ESC 65162 120KV Brushelss Motor with Propeller and Remote Controller for E Foil Boards
Couldn't load pickup availability
In Stock MAYRC Kit 160A Water-proof ESC 65162 120KV Brushelss Motor with Propeller and Remote Controller for E Foil Boards
Specification:

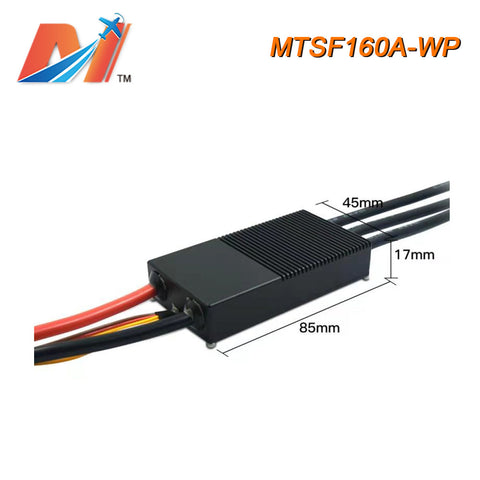

| Model 1. |
MTSF160A-WP |
| Cont. Current | 160A |
| Max. Current | 180A |
| Volt. | 25-60V |
| Water-cooled | water-proof version IP67 Can work in water |

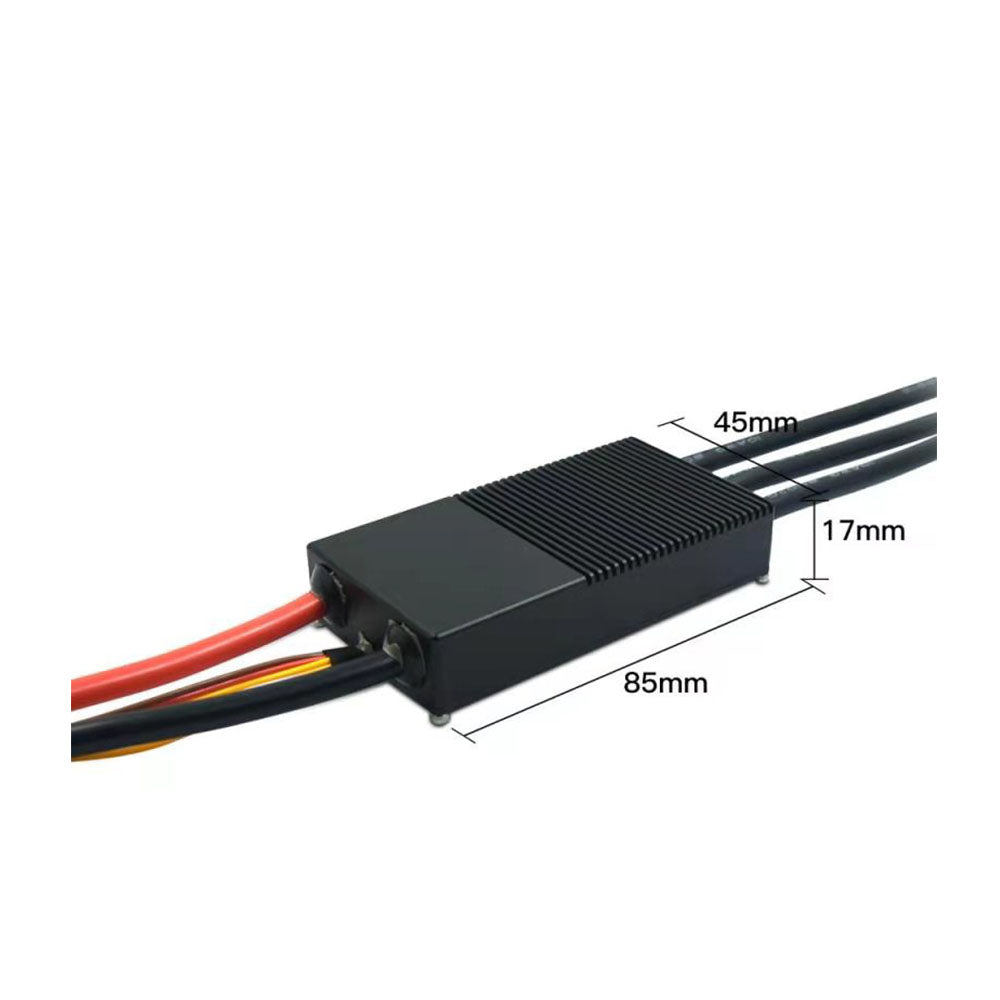

| Size | 95*46*23mm |
| Weight | 180g |

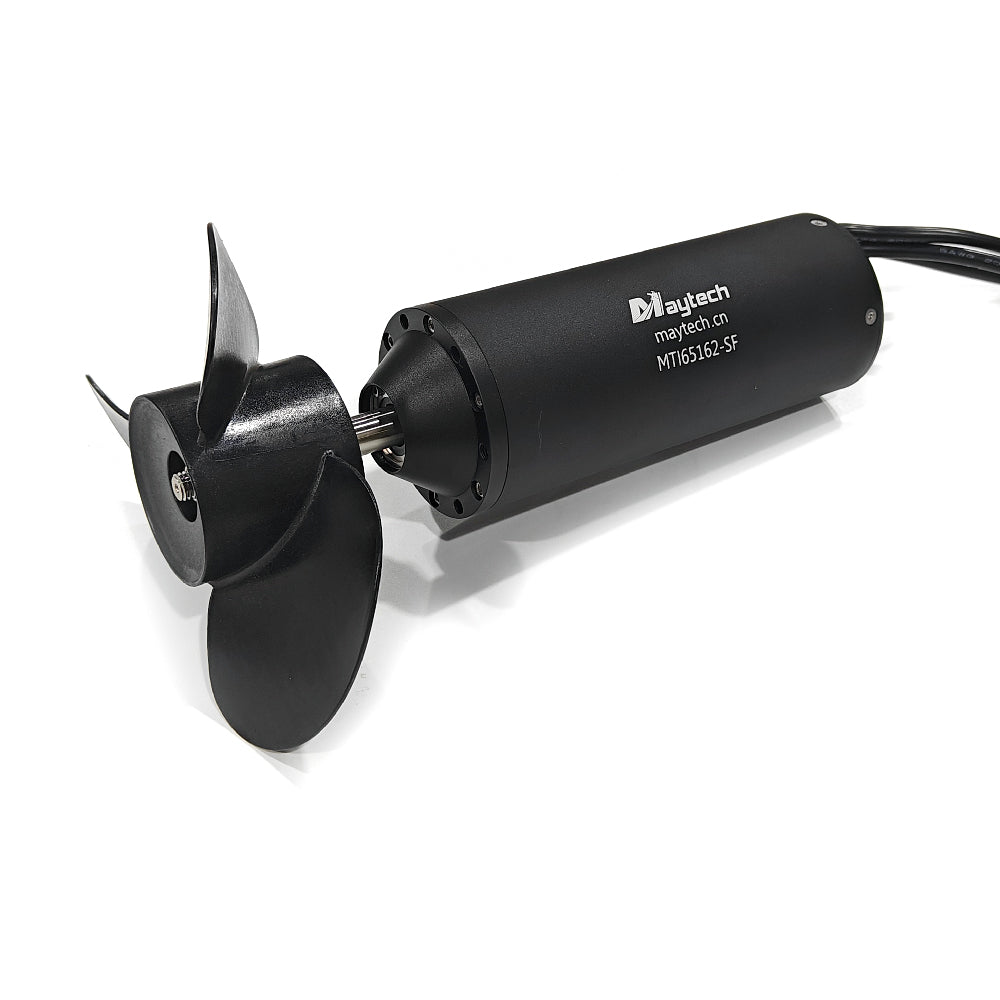

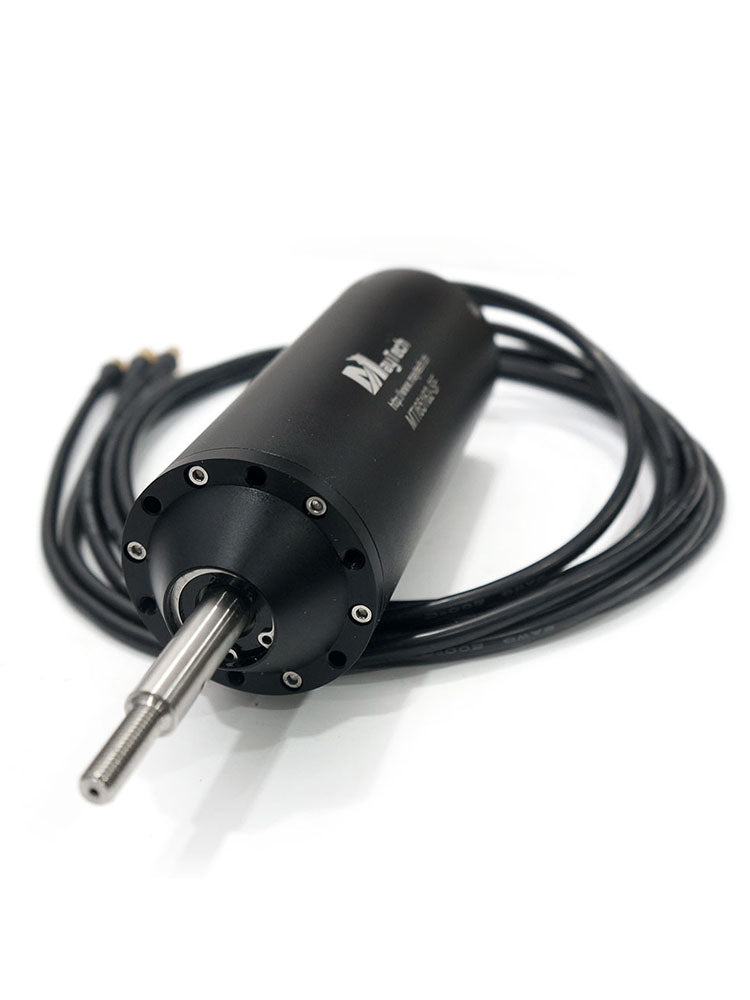

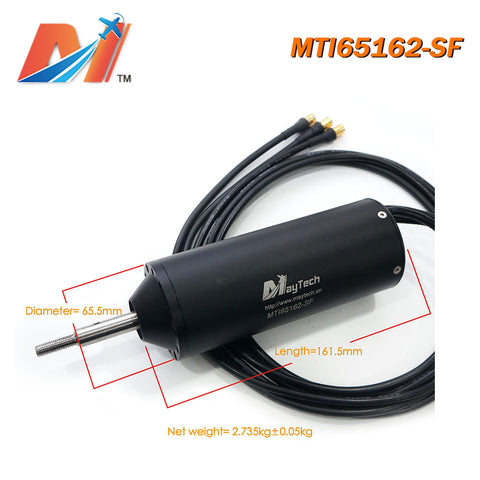

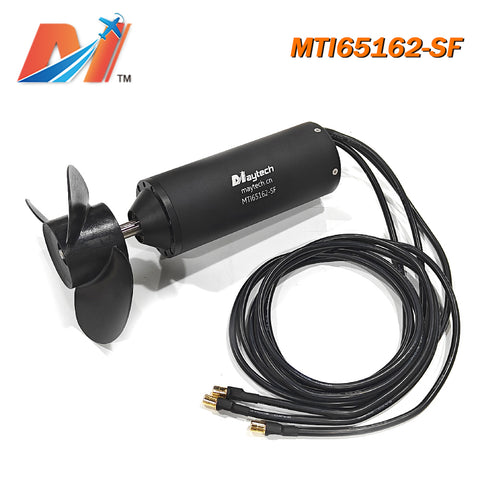

| Model 2. | MTI65162-120-SF |
| KV |
120 |
| Waterproof | IP68 |
| Max Power | 9KW |
| Pole Number | 18N6P |
| Max Torque | 9N.m |
| Input Voltage | 25-105KV |
| Cable Length | 1.3m |
| Connector | 8.0mm gold-plated male connector |
| Customize | Logo, cable length, connector, cover, shaft, etc., contact us |

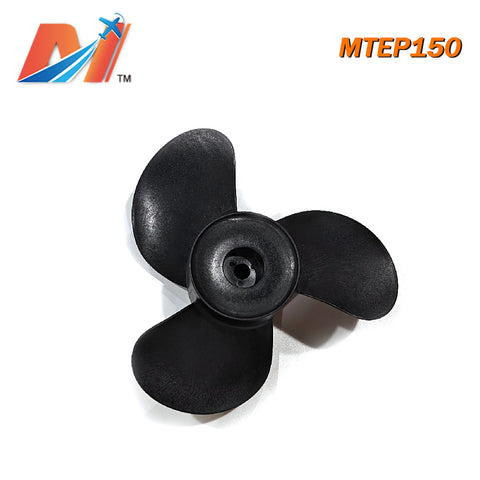

| Model 4： | MTEP150 |

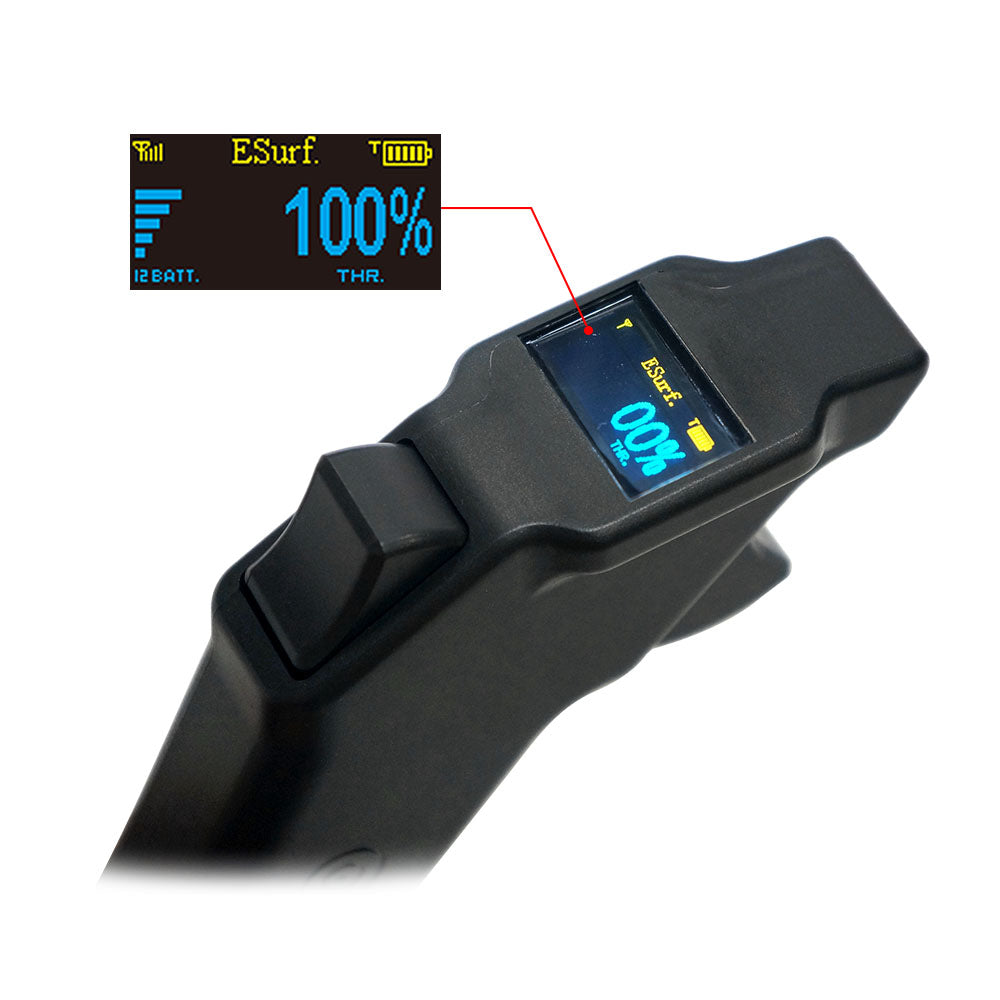

| Model 4： | MTSKR1905WF |
| Application: |

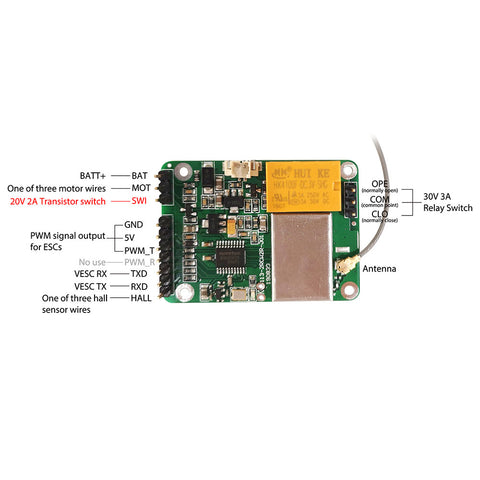

Mountainboard, Esurf, Efoil,boat, etc. Max Voltage detection range: 5-80V ±5% Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay |
| Switch Max current: | 3A; |
| Transistor switch max current: | 2A; VESC communication protocol |
| Fully Waterproof: | Yes |
| Display Screen: | Yes |
| Display Parameters: | Voltage, remote & battery power, signal strength, distance,RPM |
| Frequency: | 2.4GHZ |
| Mode: | Esk8/Esurf |
| Wireless Charging: | Yes |

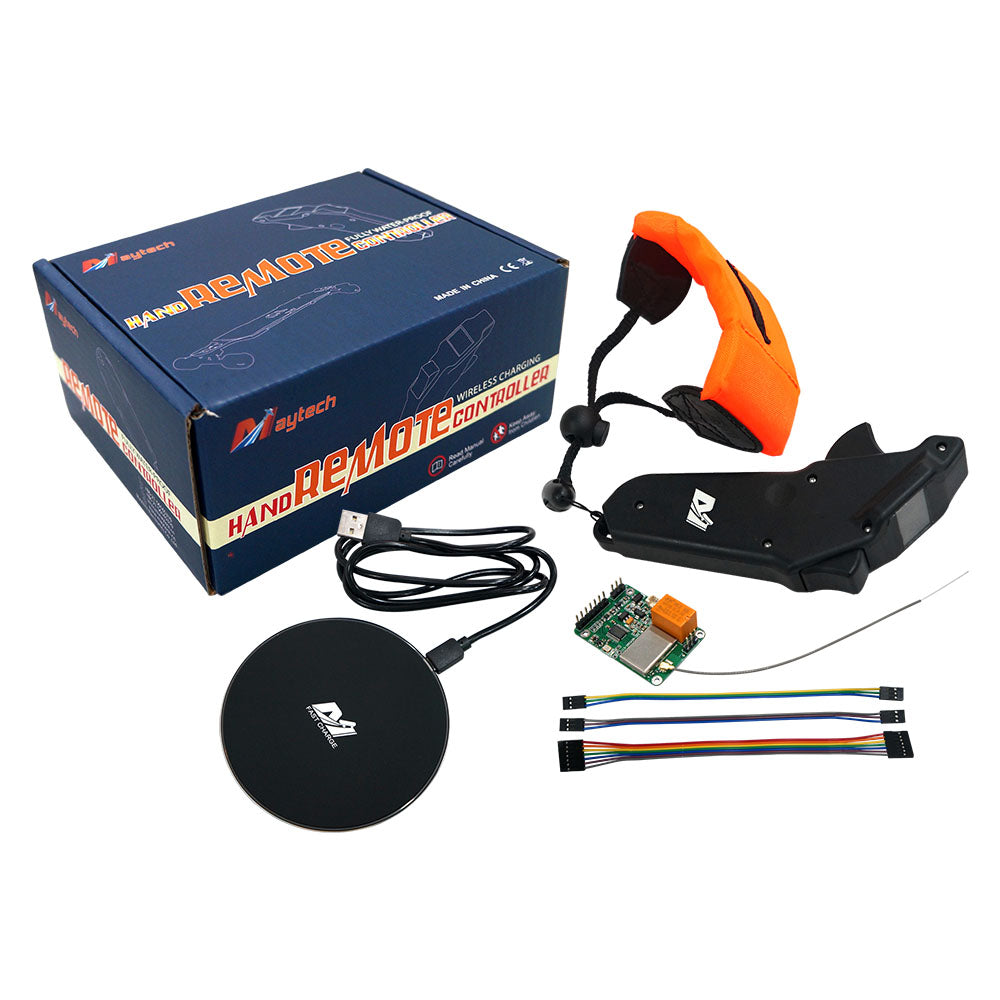

| Accessories: | Receiver, strape, 3pcs Dupont cable, Wireless charging pad |

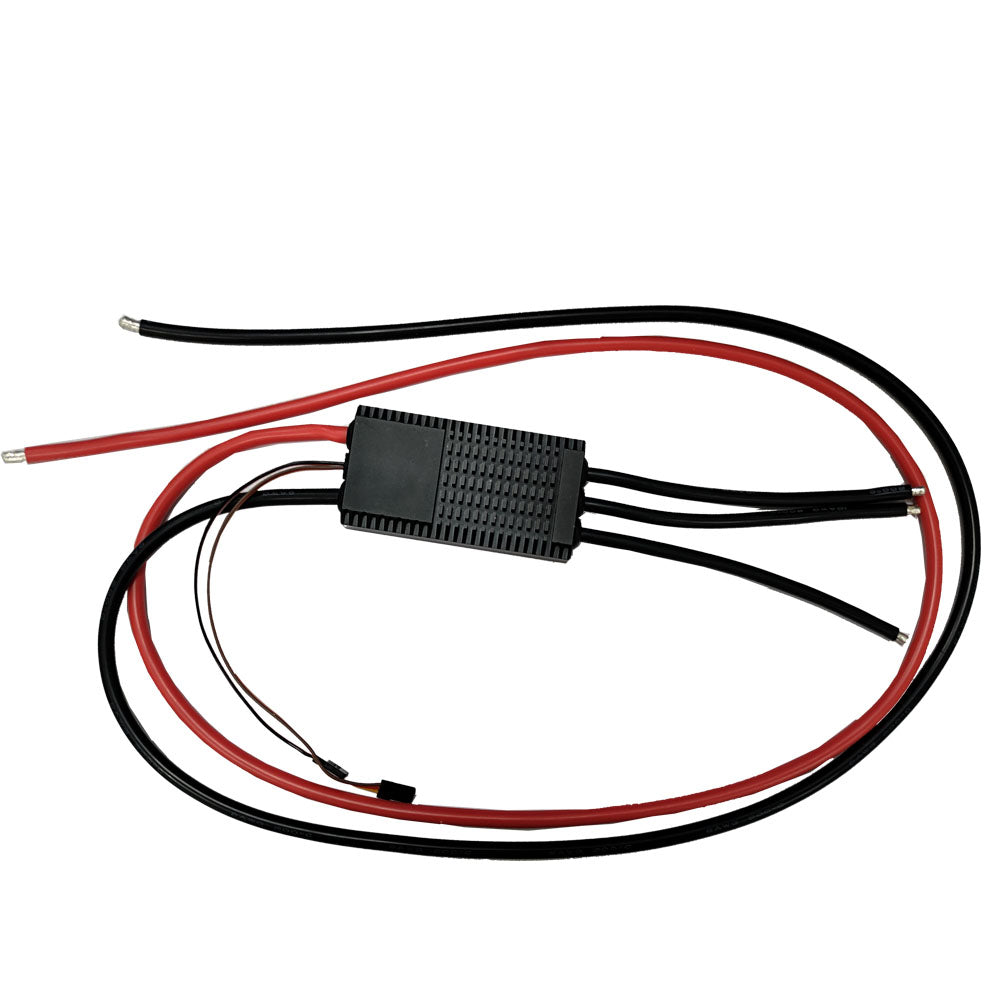

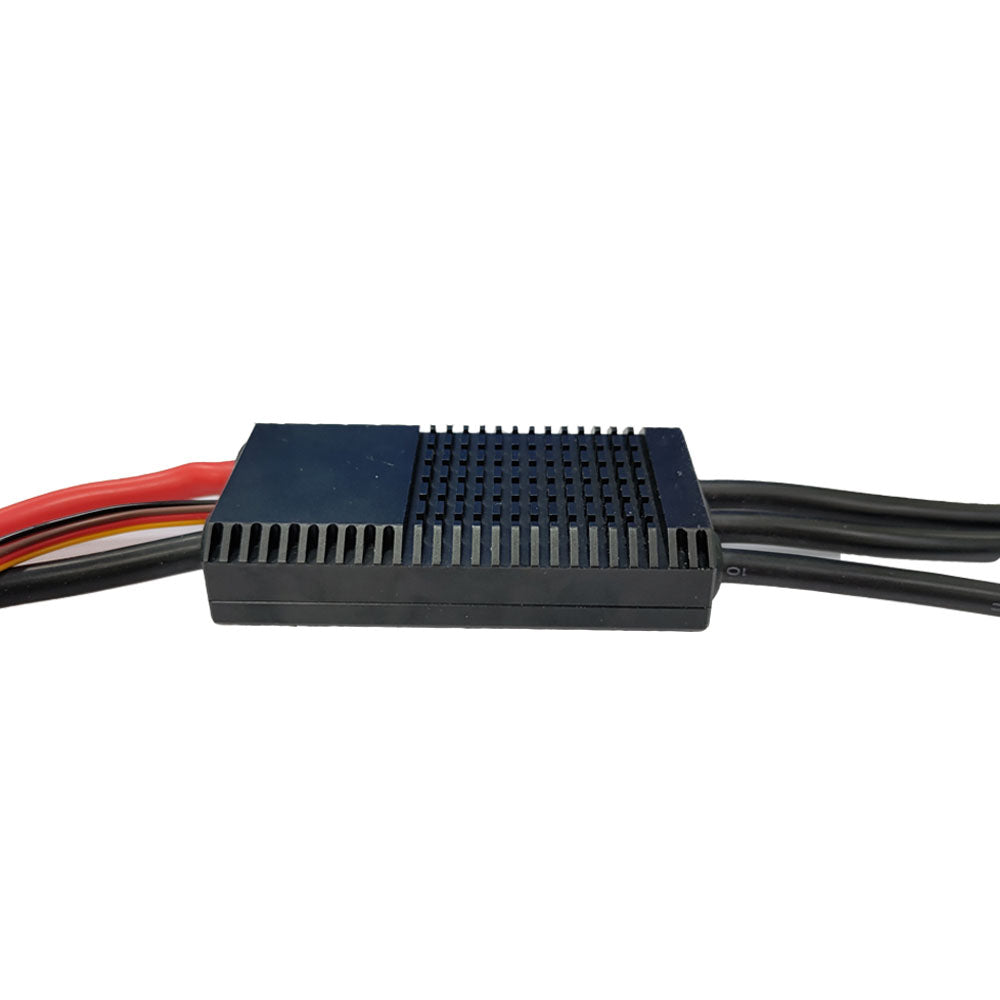

MTSF160A-WP Main Features：
1：8-layer 3oz PCB plate, 3.4mm, support high current
2：Fully sealed, IP68 water-proof (waterproof version ESC)
3：32BIT Micropprocessor
4：Only use geniune US and Japan imported electric components.
5：Compact size, high efficiency, low heat.
6：Over-heat, over-voltage, over-current, low voltage protection.
7：100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
Application：
Foil surfing, Jetsurf , Kayak, electric hydrofoil, Electric Jet Board, RC boats, baitboats, Fishing boat ,underwater robots, water sports, Underwater Remotely Operated Vehicles, Subsea Robots, etc.
Customized Service：
Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com
Warranty Service:
1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
