Mayrc Industrial
Maytech Efoil Kit MTI65162 Motor + 300A Water-cooled ESC + MTSKR1905WF V2 Remote Electric Foil Surfboard Hydrofoil Kit
Maytech Efoil Kit MTI65162 Motor + 300A Water-cooled ESC + MTSKR1905WF V2 Remote Electric Foil Surfboard Hydrofoil Kit
Regular price
$825.90 USD
Regular price
$1,999.00 USD
Sale price
$825.90 USD
Unit price
/
per
Couldn't load pickup availability

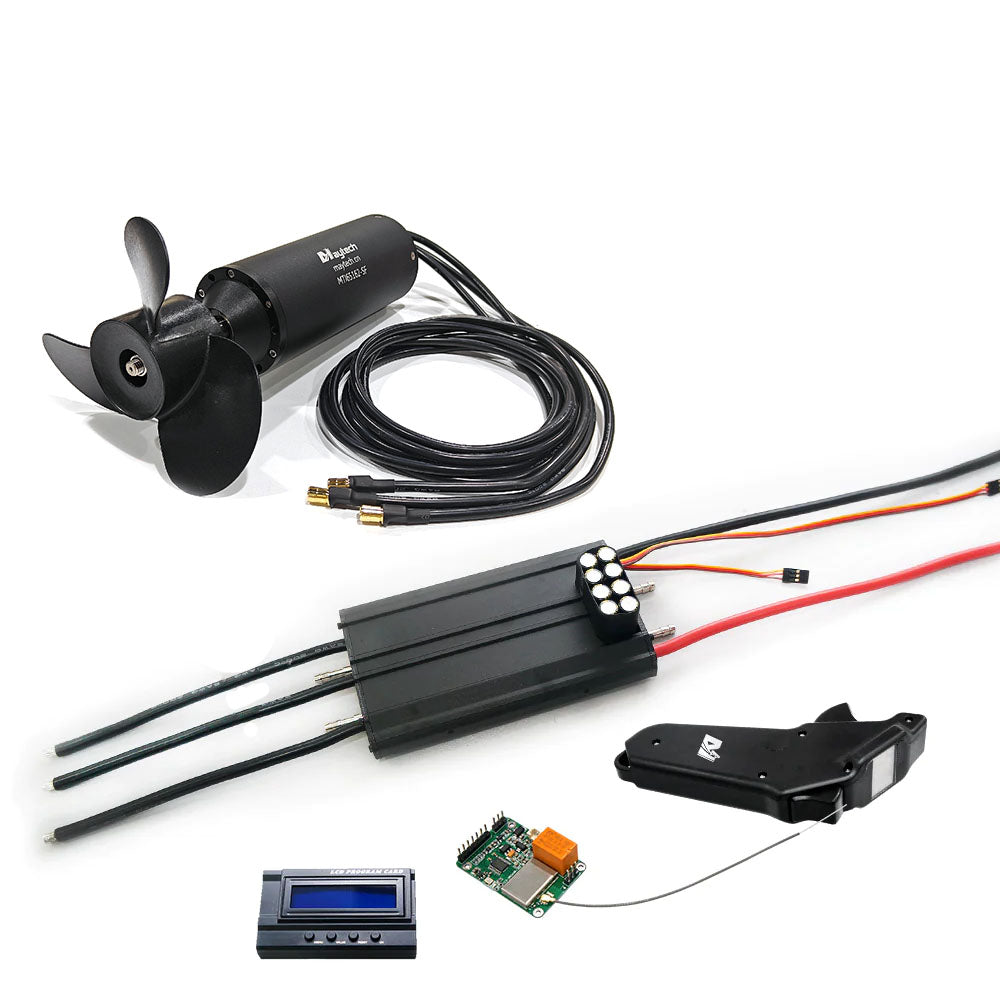

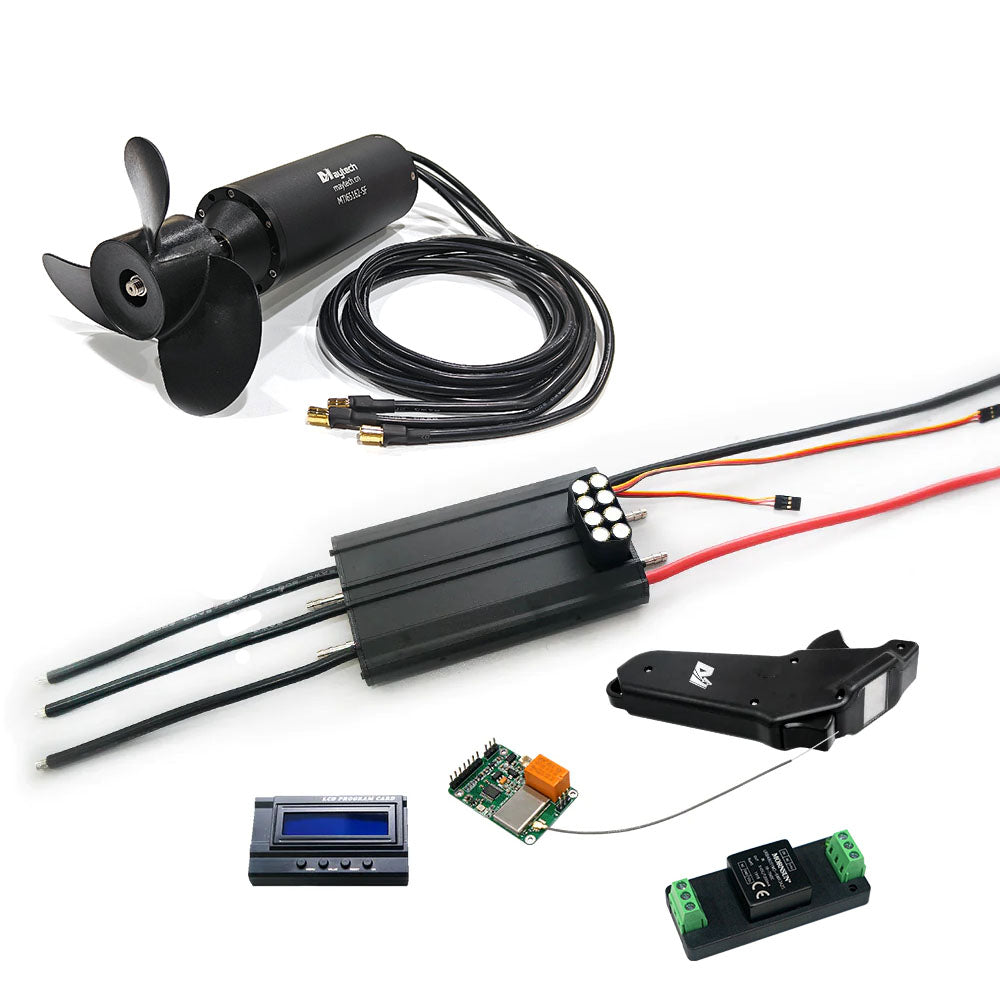

Kit Includes:
-
1pcs MTI65162-SF motor with free propeller
-
(Motor can be replaced with: 120KV/190KV screw shaft without propeller)
-
1pcs MTSF300A-OPTO 300A Water-cooled ESC with progcard
-
1pcs MTSKR1905WF remote
Product Details:

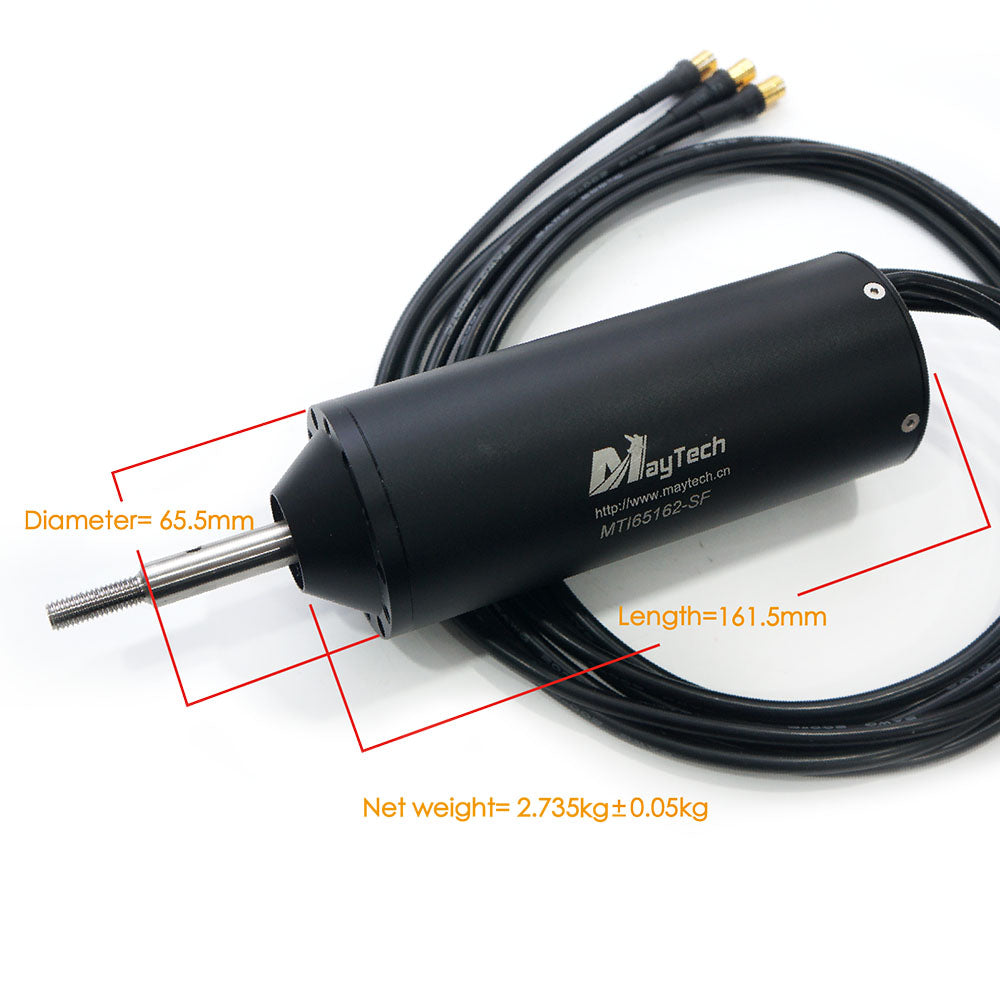

1. Maytech MTI65162-SF Fully Waterproof Motor with Propeller
>Click for more details
1.1 Main Advantage
- Fully water-proof, IP68;
- Rust-prevention, can be used in sea water, salt water, rivers, lakes, etc.;
- With roller bearing for longer life span, more thrust power;
- With ceramic ring waterseal technology, better water-proof performance than oil-sealed;
- Shaft, KV, motor cables can be customized.
1.2 Specification
Model No. | MTI65162-SF | Motor Type | Inrunner Motor |
Waterproof | IP68 | KV(RPM/V) | 100 |
Max. Current | 300A | Input Volt | 6-20S |
Max. Output Watt | 9.8KW | Rated Power | 8.9KW |
Idle Current @8.4V | 1.5A | Max. Torque | 10N.m |
Motor Weight | 2850g | Shaft | 12mm |
Motor Dimension | Φ65x 162mm | Stator Dimension | Φ61x 100mm |
Hall Sensor | No | Propeller | 7.5*7 inch |
1.3 Motor Drawing
-
The motor has 2 types of shaft, splined shaft and screw shaft.
-
Splined shaft motor is 100KV with 7.5*7 inch splined propeller.
-
Screw shaft motor is 120KV and 190KV, propeller is not included.
-
In the Efoil kit is matched with 100KV Splined shaft with Propeller.
Splind Shaft Motor with Propeller
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/65162_600x600.png?v=1598866898)
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/MTI65162-100-SFV2_9_600x600.jpg?v=1598866962)
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/65162-SF_7_eba44b8f-df3d-4728-9e31-ca4d6cd086fa_480x480.jpg?v=1698912264)

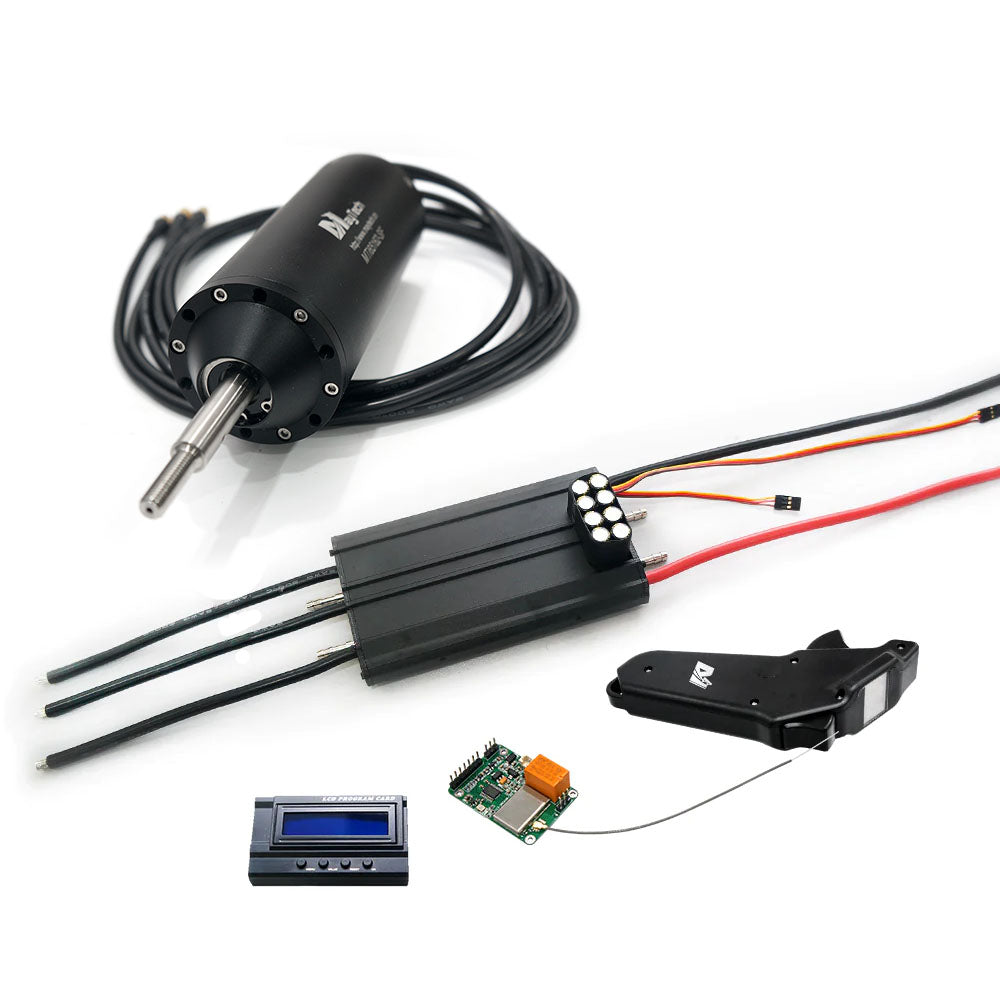

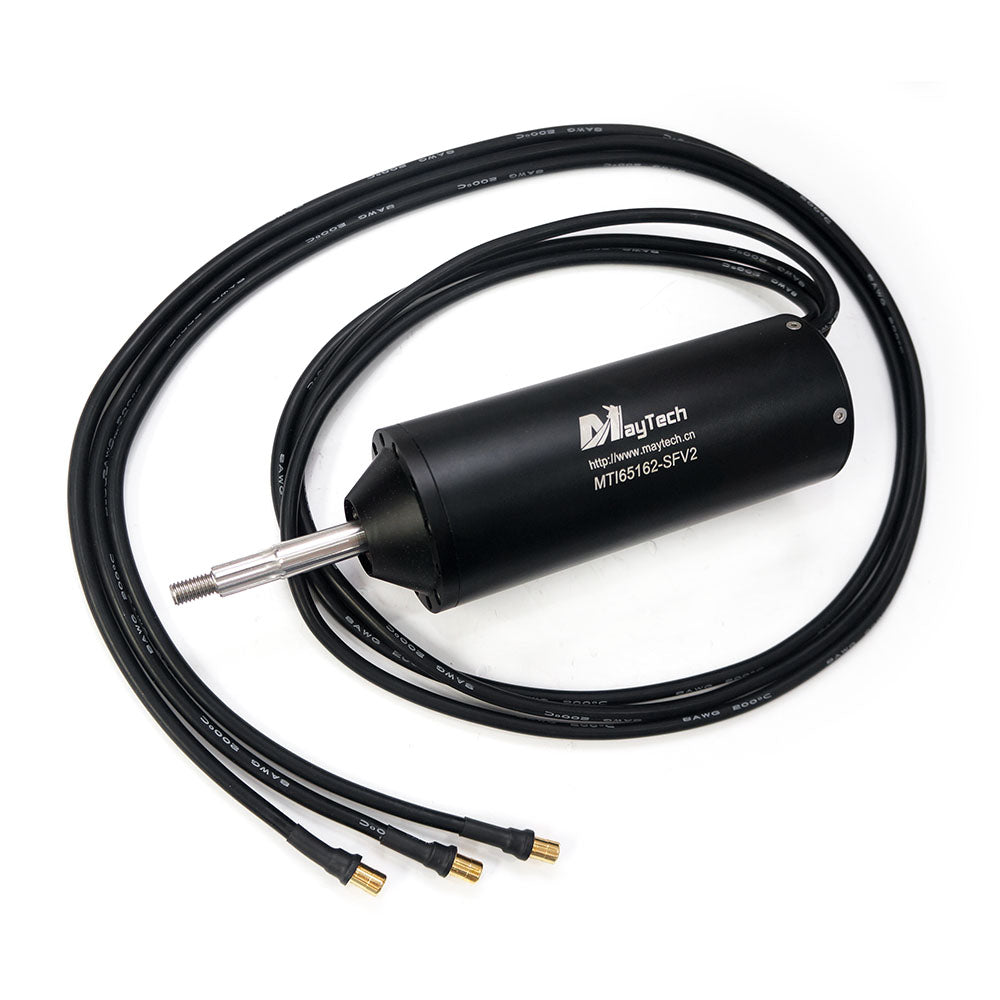

Screw Shaft Motor without Propeller
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/ca0a9e10e5d6de26671cefaf8fa0decc_600x600.png?v=1598867112)
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/MTI65162-100-SF_1_600x600.jpg?v=1598867056)

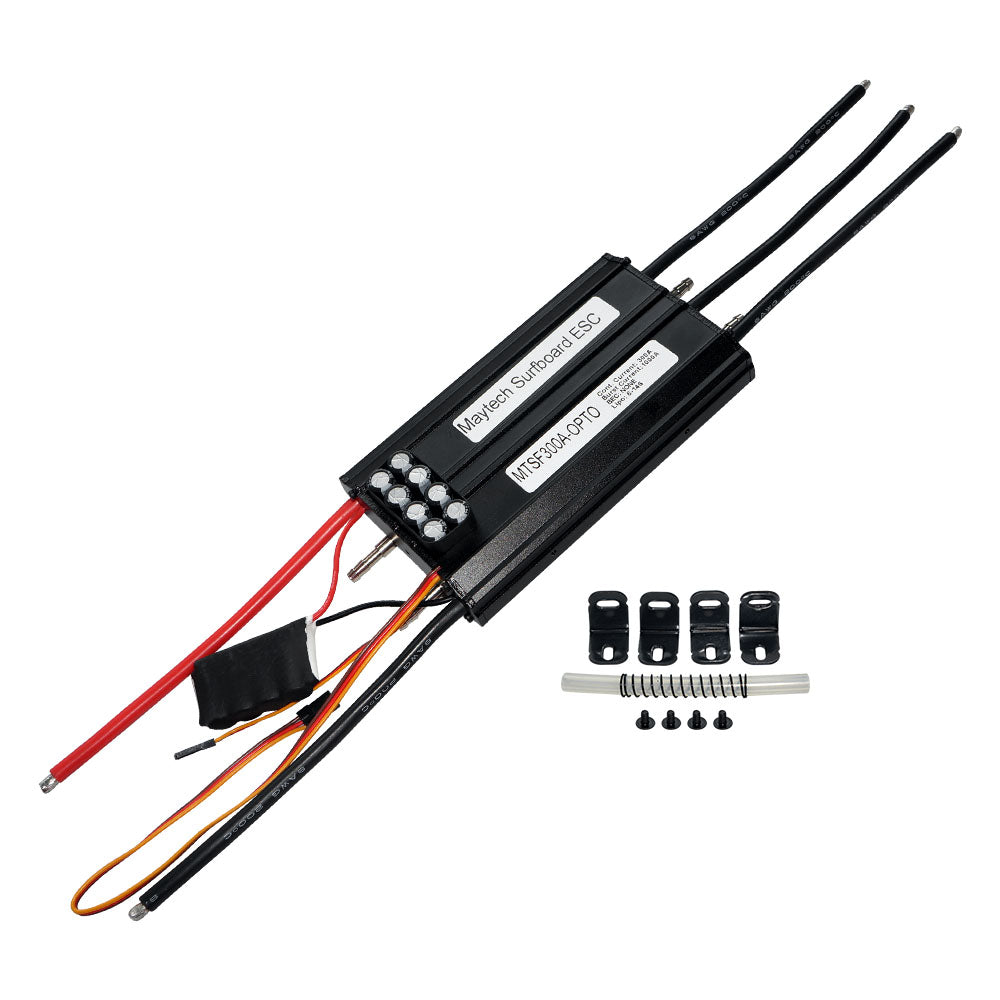

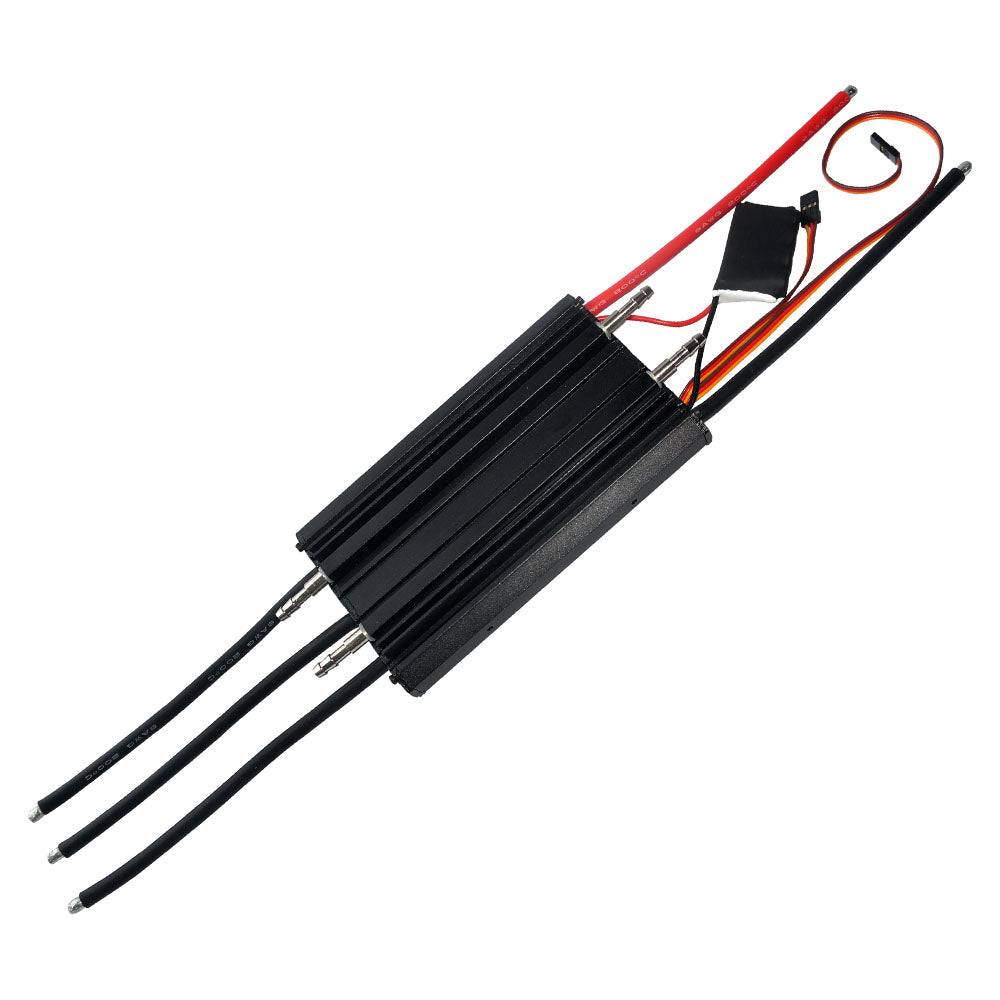

2. Maytech MTSF300A-OPTO Water-cooled 300A ESC with Progcard
>Click for more details
2.1 Main Advantages
- With aluminum case and water cooling tube;
- Low voltage cut off protection;
- Over-heat protection;
- Lost throttle signal protection;
- Programmable.

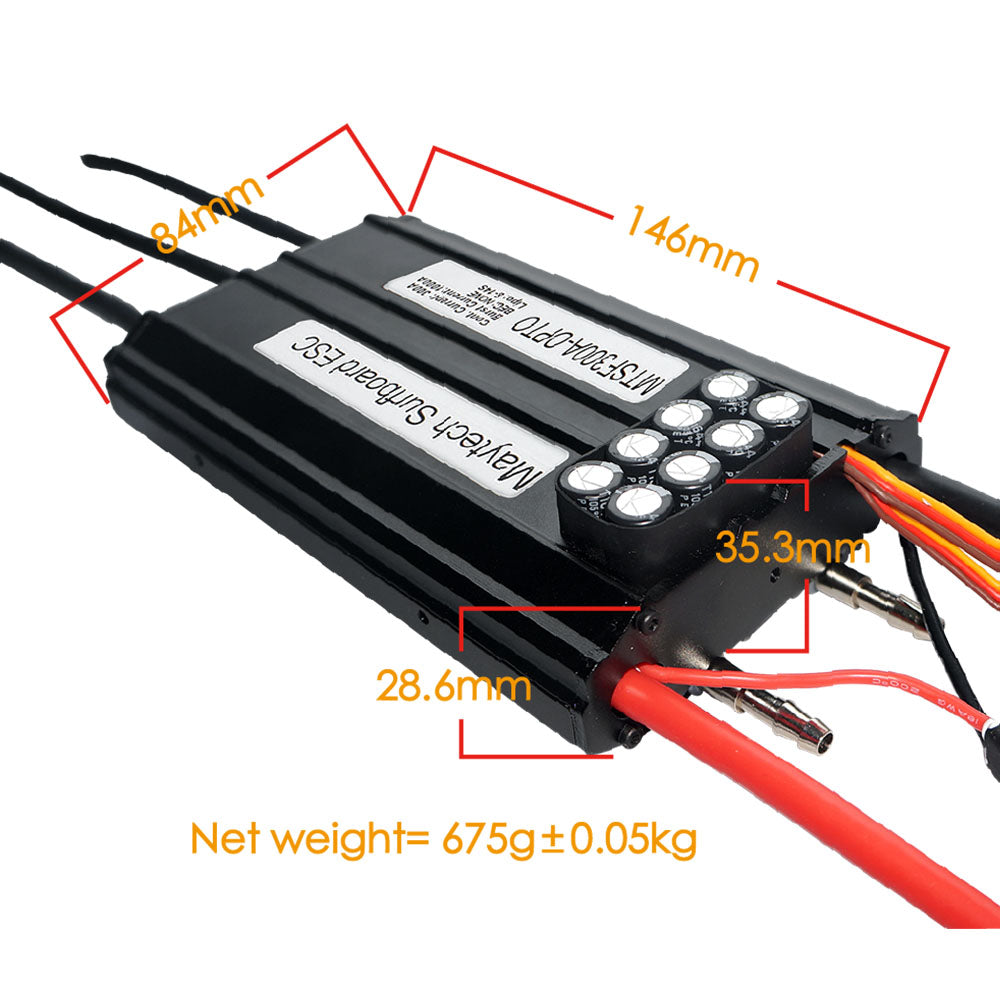

2.2 Specification
Model No. | MTSF300A-OPTO | Waterproof | No |
Cont. Current | 300A | Max. Current | 1000A |
Input Volt | 6-14S | UBEC | No |
Water-cooling | Yes | Power Cable | 8AWG |
Weight | 675g | Programmable | Yes, with Progcard |

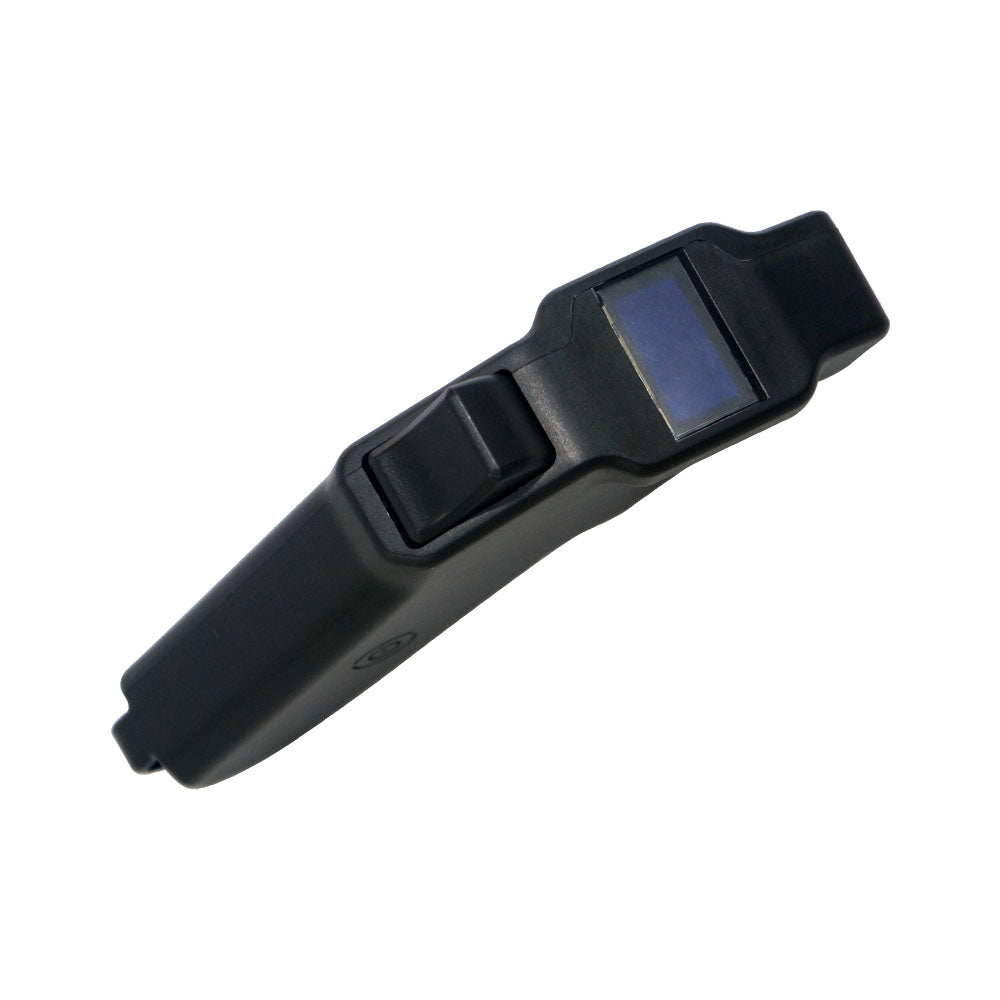

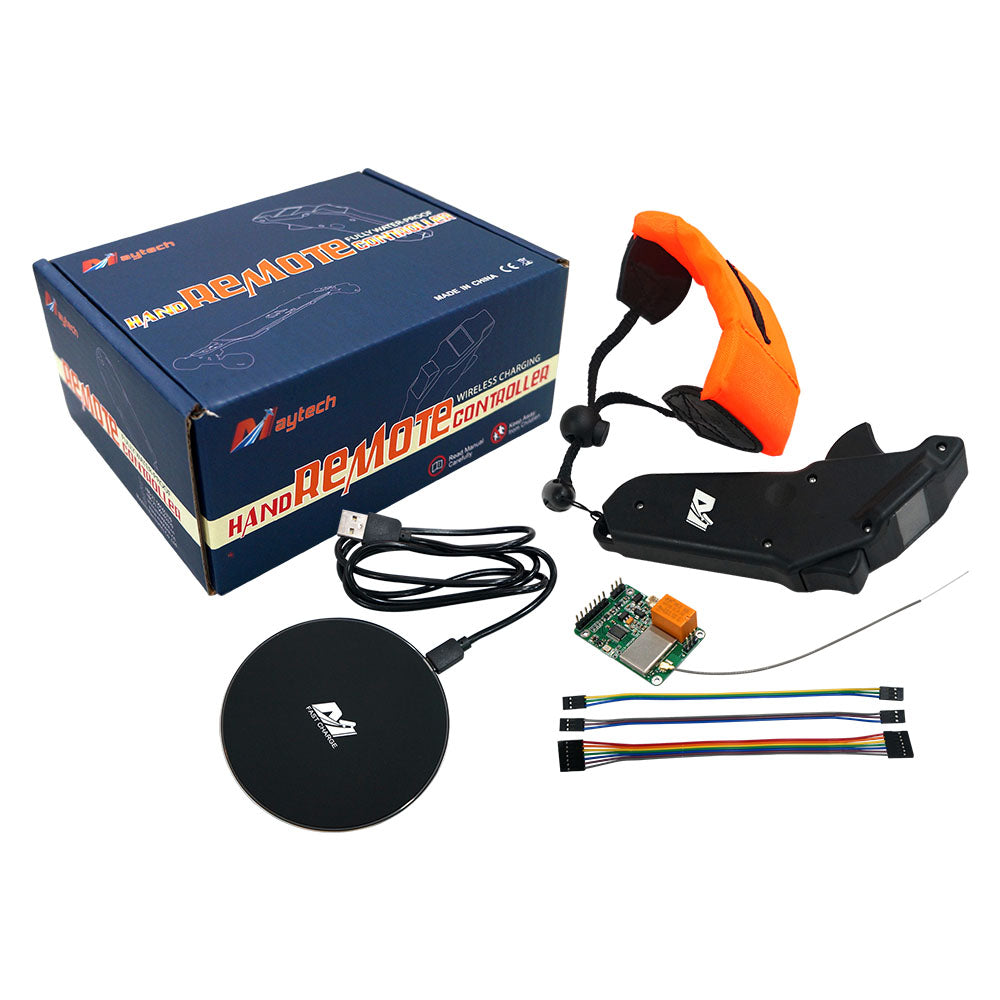

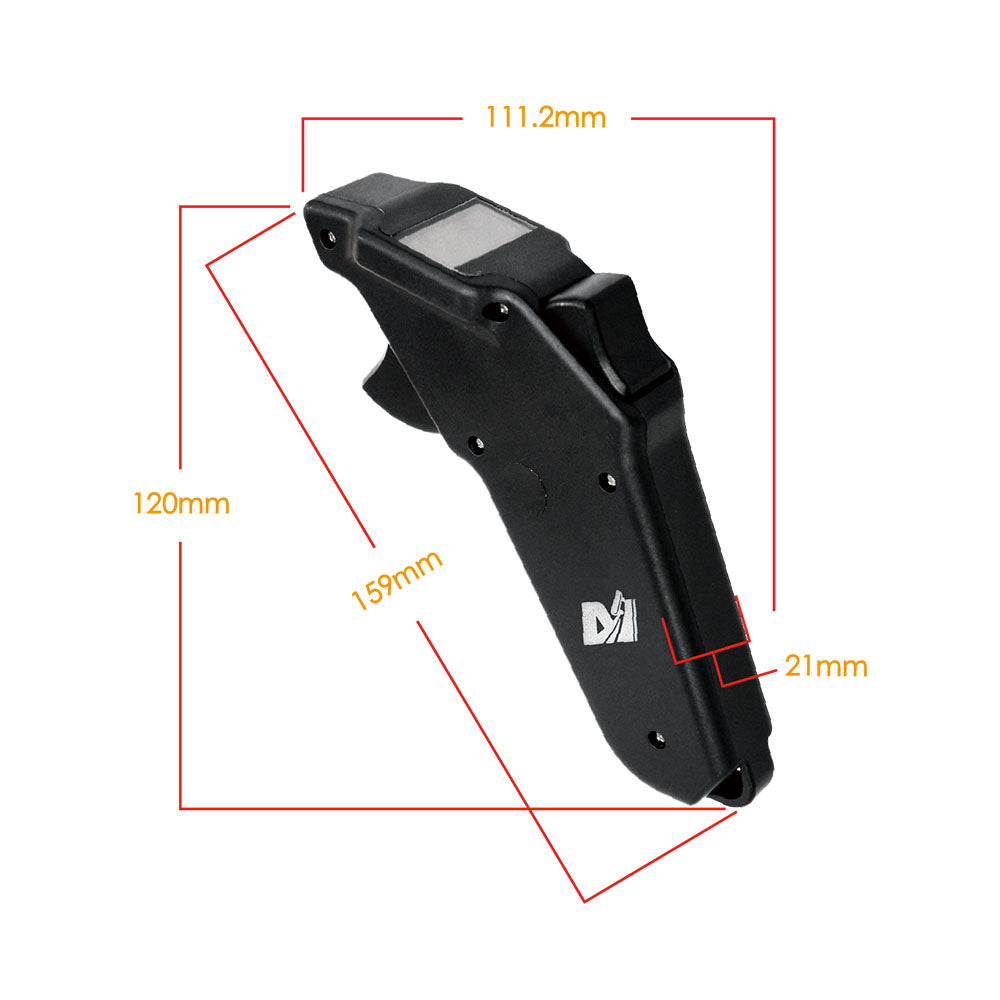

3. Maytech MTSKR1905WF V2 IP67 Fully Waterproof Remote
>Click for More Details
3.1 Main Advantage
- Nano coating waterproof technology; reliable water-proof performance;
- Comptible with V4, V6 and other ESC controllers;
- Display Screen: OLED color;
- Wireless charging;
- Remote display parameters: throttle percentage, remote battery &main battery voltage, motor RPM; if use it with VESC controllers, it can show current, temperature, etc.;
- Solid signal: Remote and receiver signal strength is enhenced to avoid some signal interference nearby;

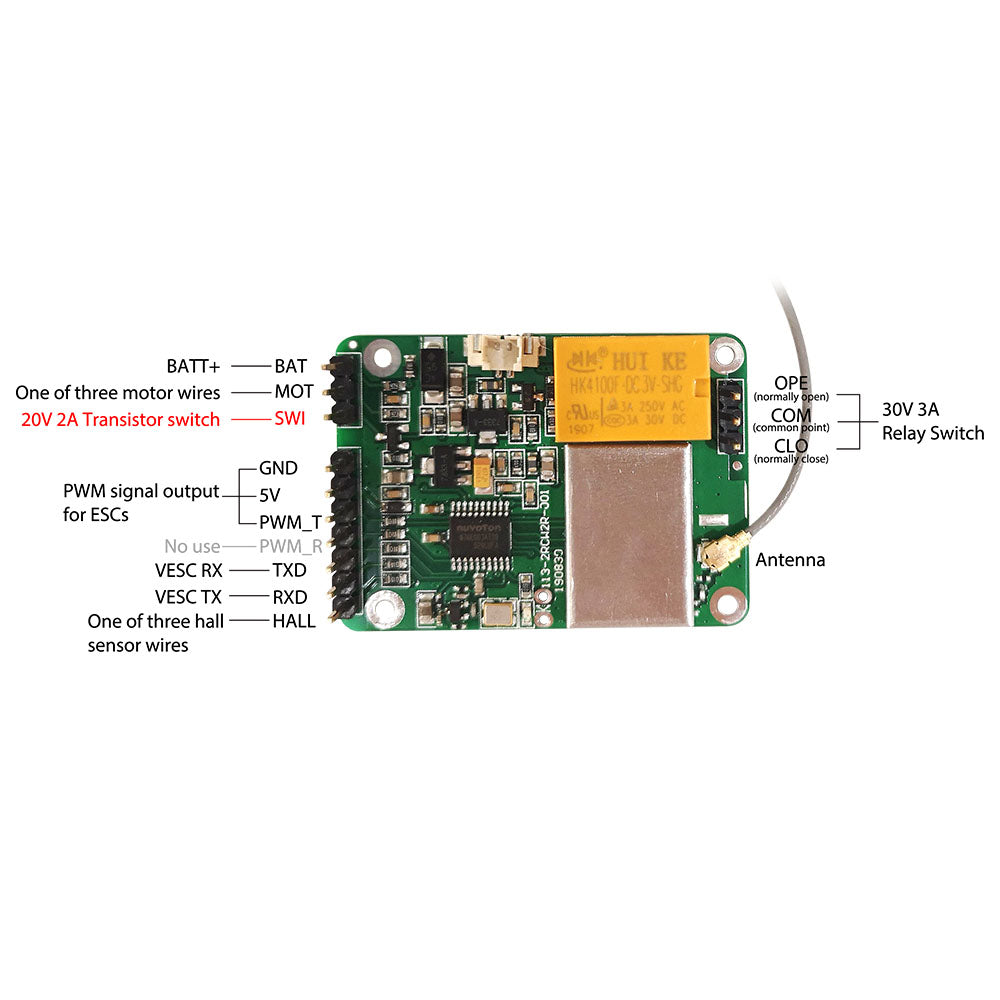

- Built-in 30V 3A Relay mechanical switch and 20V 2A transistor electronics switch for lights, water pump;
- Firmware is wirelessly upgradable.
3.2 Specification
Model No. | MTSKR1905WF | Waterproof | IP67 |
Charging | Wireless Charging | Display |
128x64 OLED Screen |
Display Parameters | Throttle and Battery Voltage | Relay Mechanical Switch | 30V 3A |
Switch |
Electronic 20V 2A Transistor | Frequency | 2.4 GHz Wireless |
Cruise Control | Yes(Esurf Mode) | Compatible ESC |
V4 $ V6 VESC & Other ESC Controller |
3.3 Details
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/1_600x600.png?v=1598872853)
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/2_600x600.png?v=1598872862)
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/3_600x600.png?v=1598872869)
