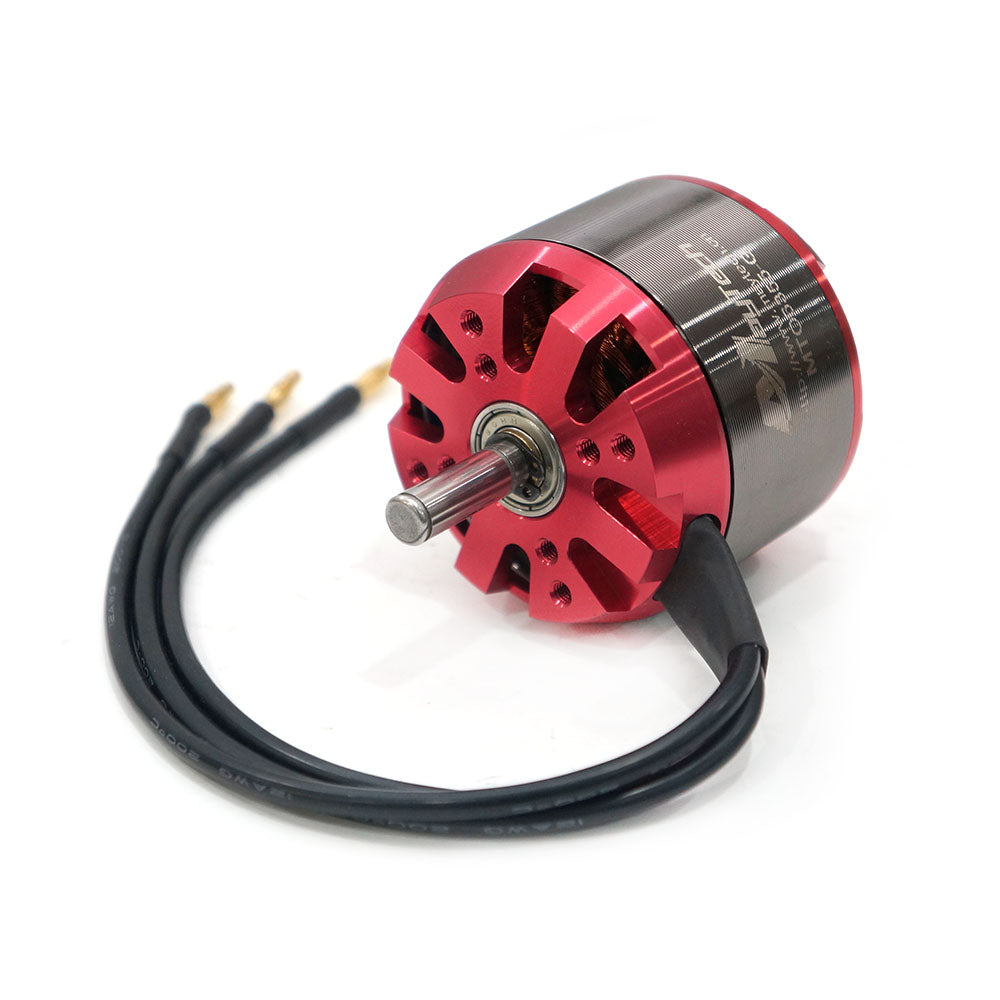

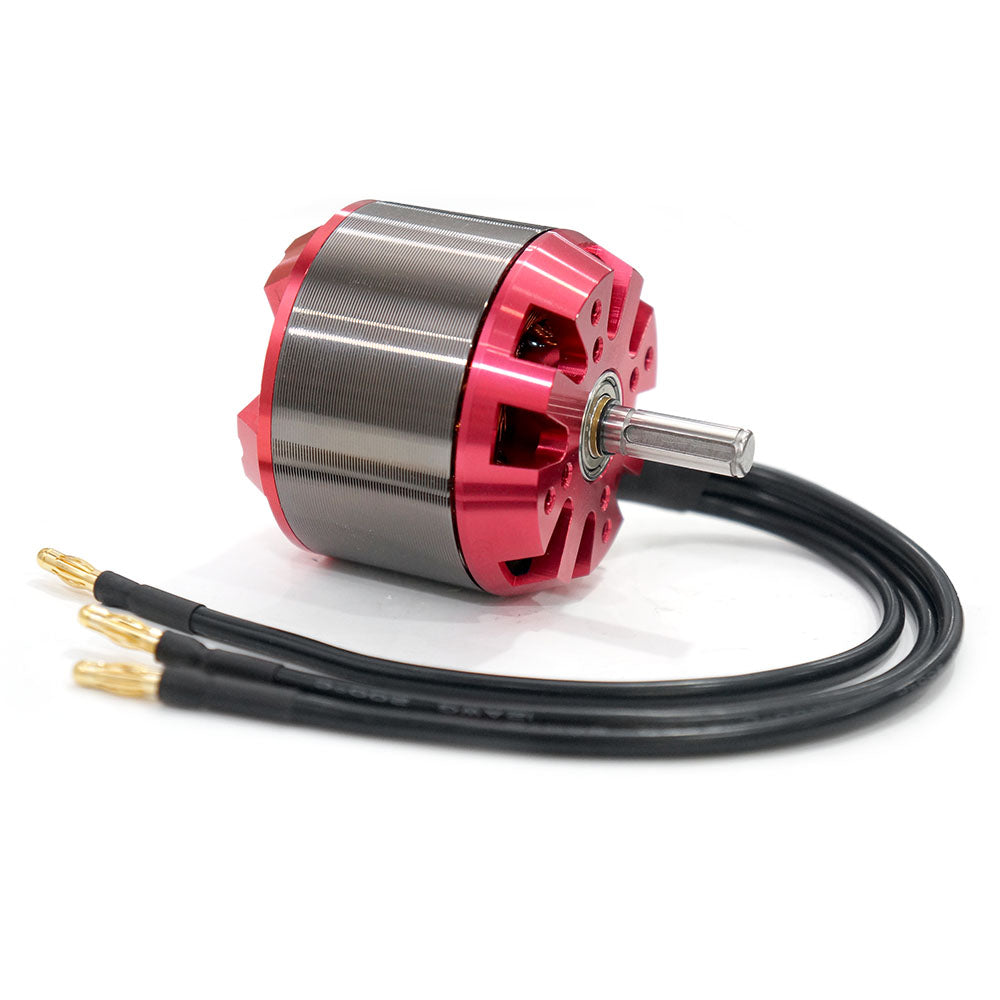

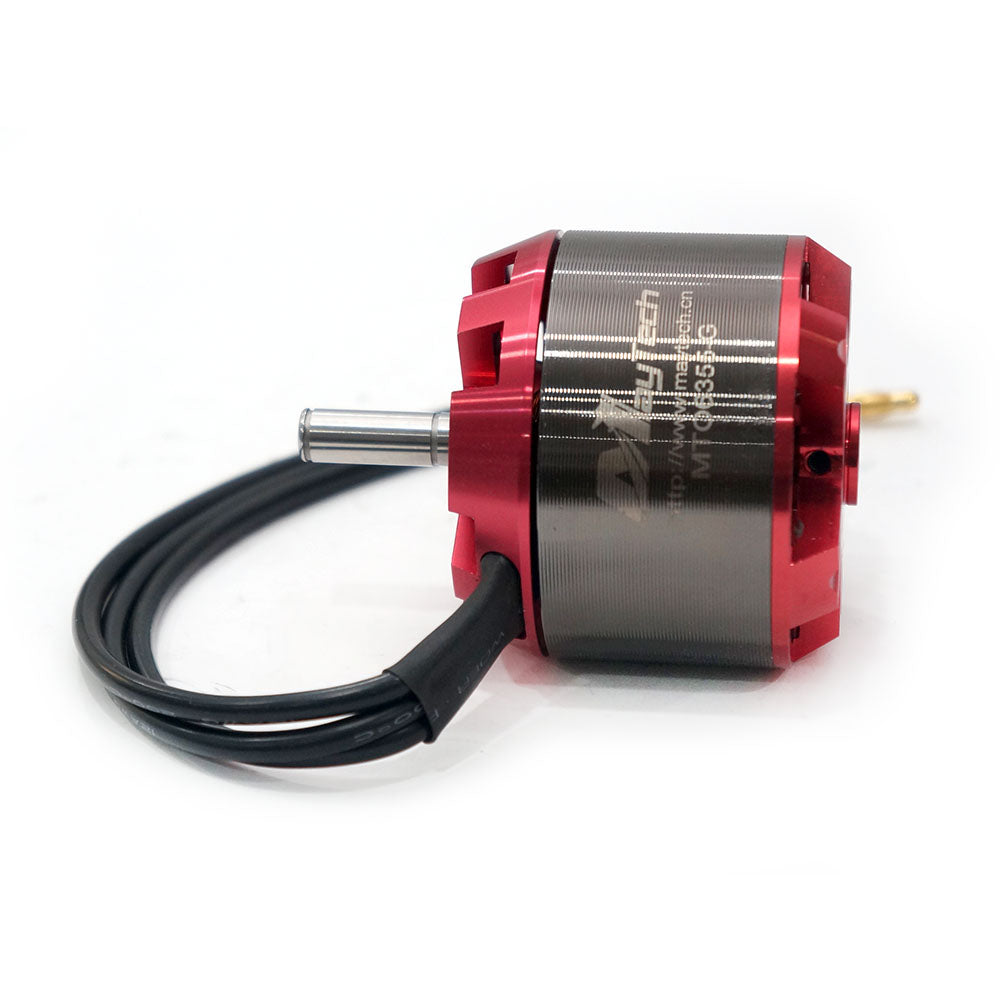

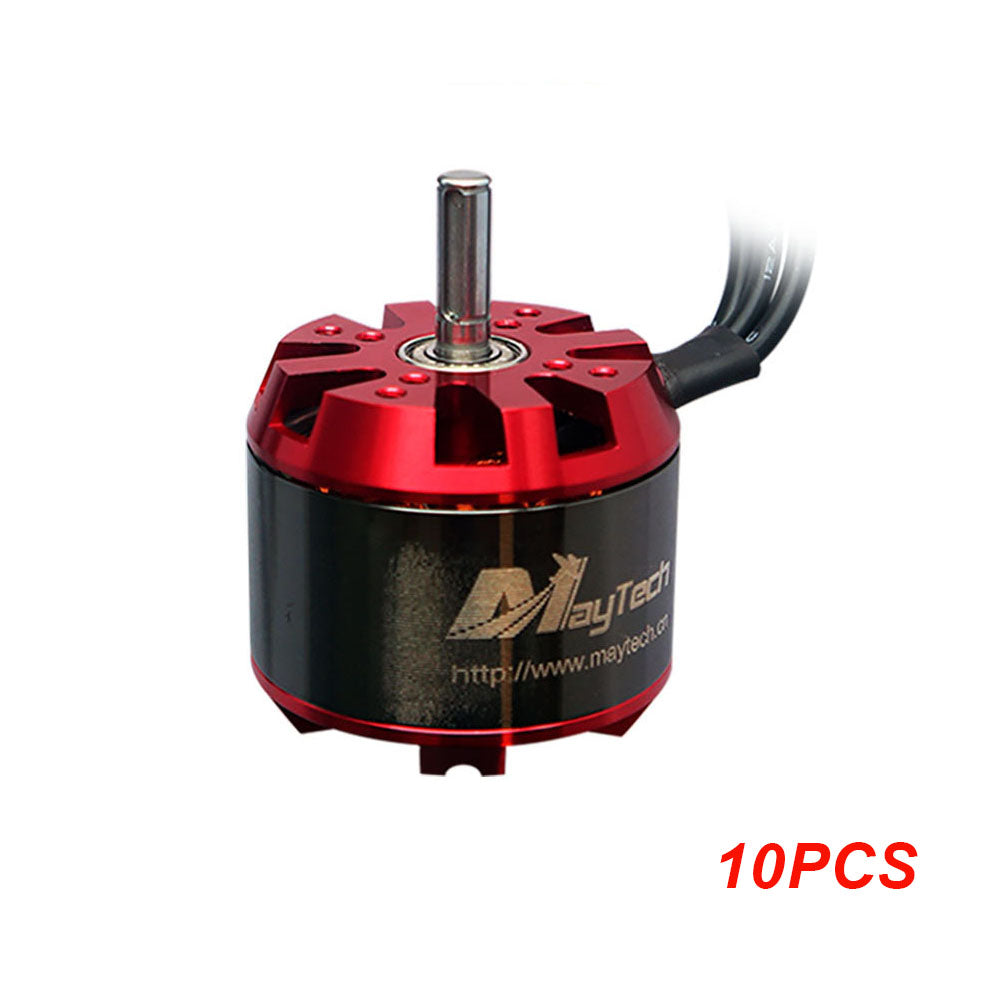

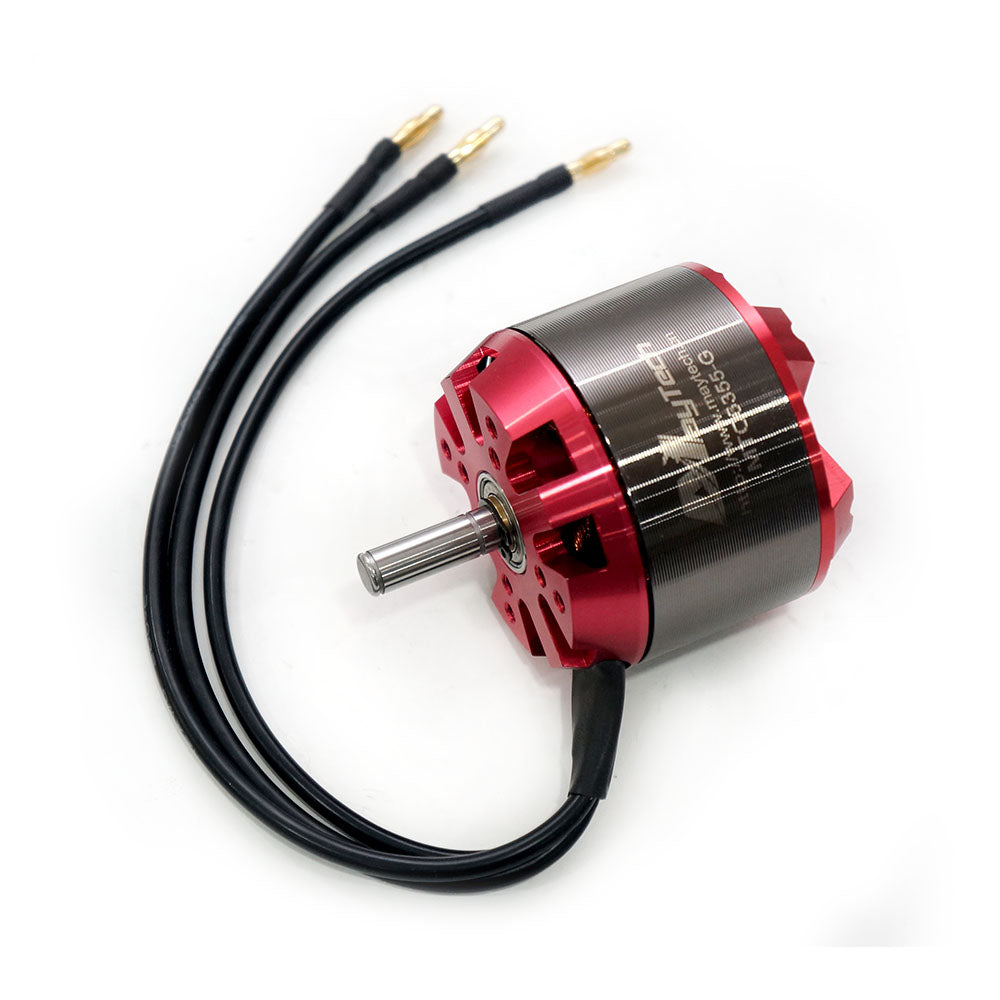

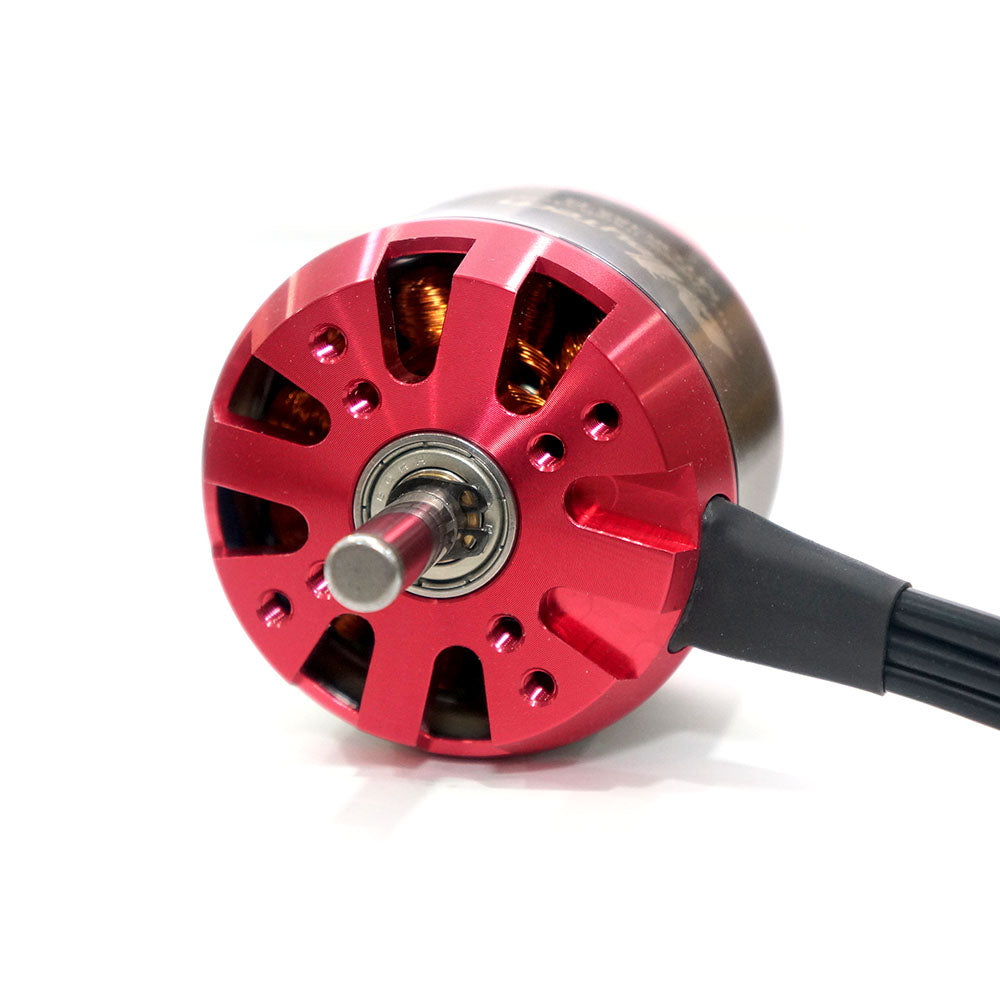

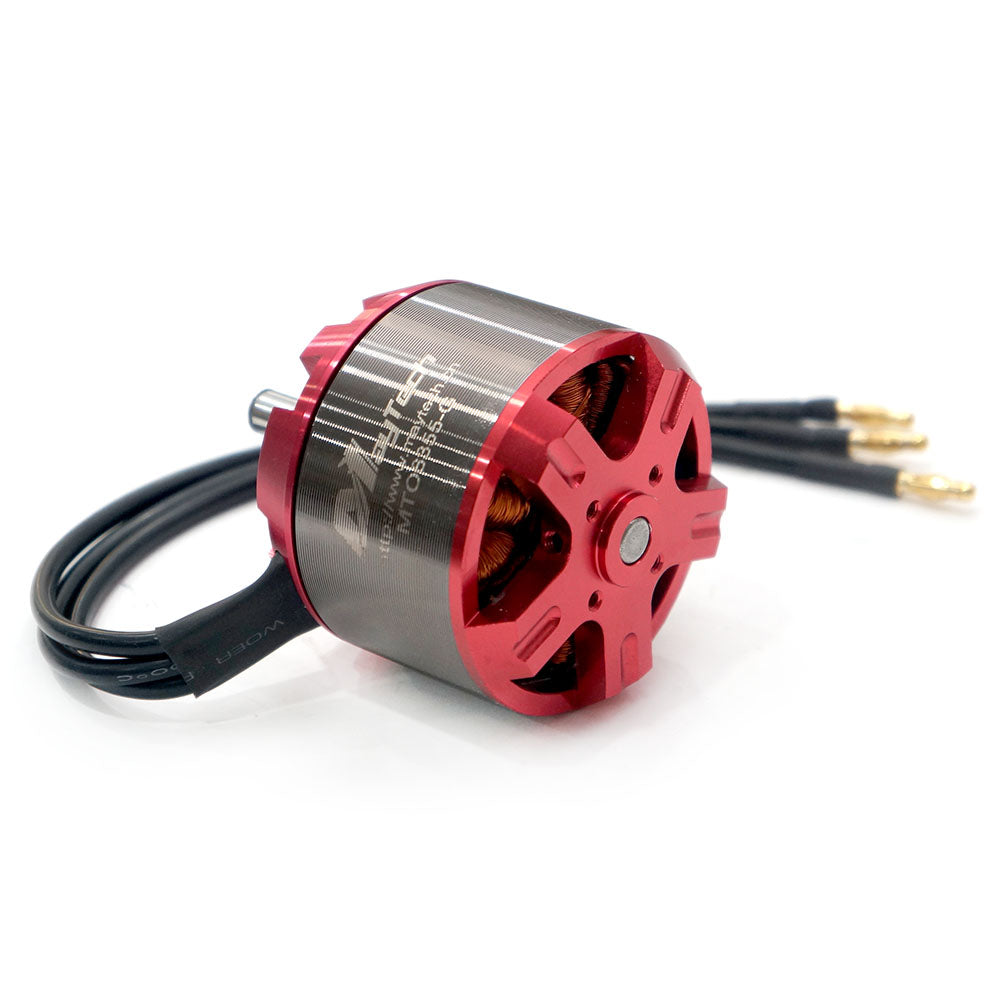

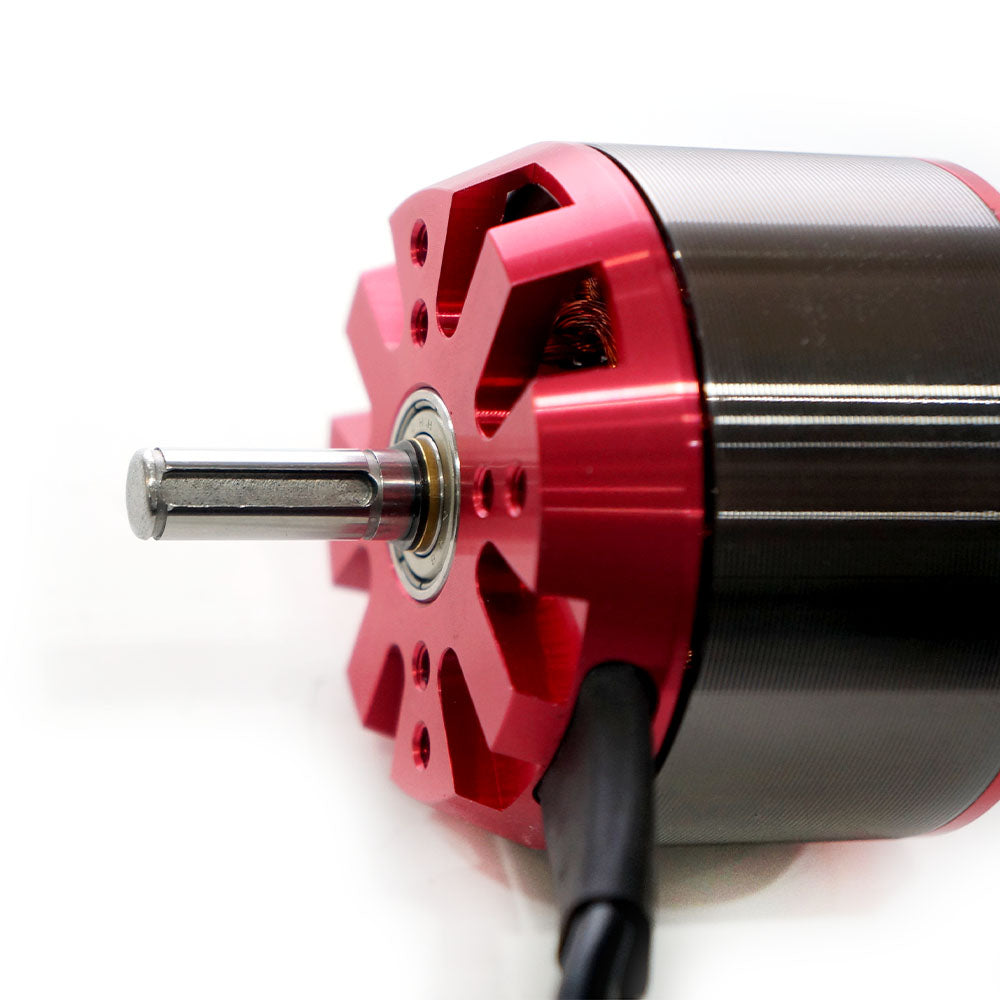

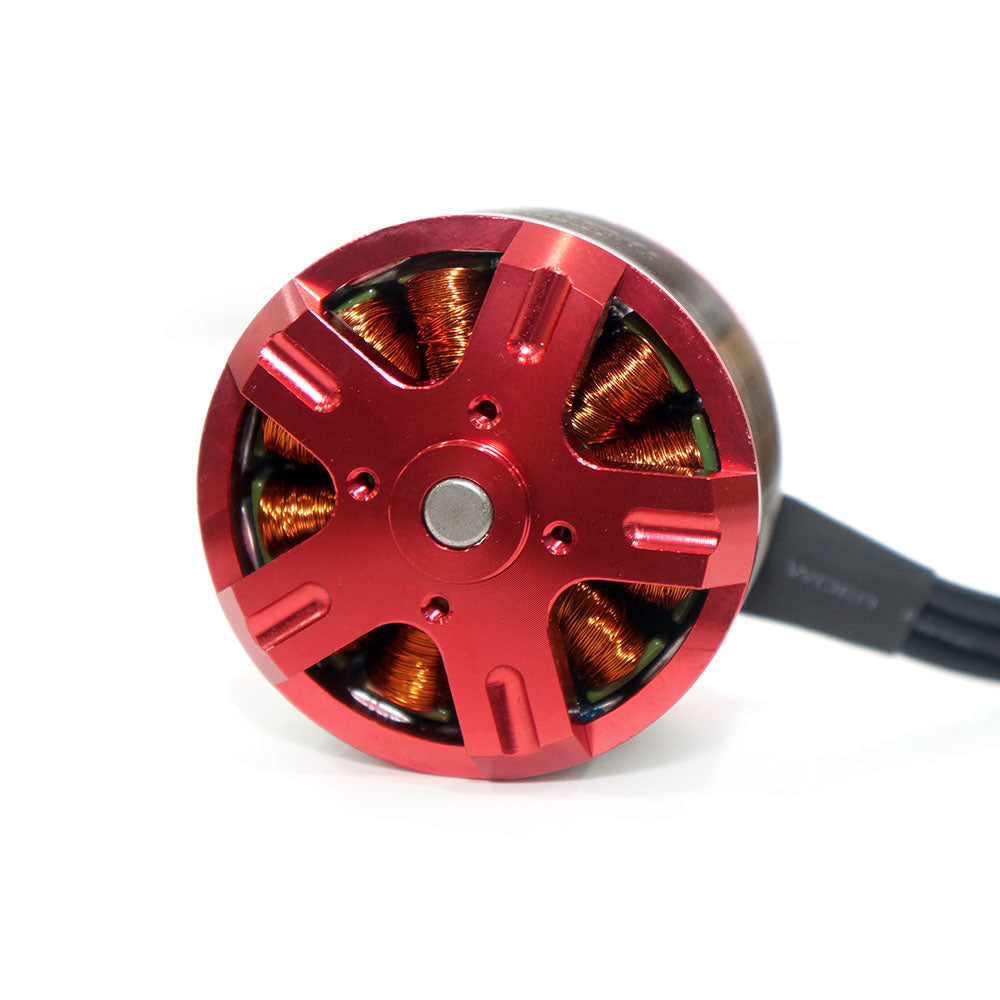

1/10PCS MAYRC 6355 70KV 230KV Brushless Outrunner Sensorless Motor for DIY Freestyle Drone/Fixed Wing Plane/UAV
1/10PCS MAYRC 6355 70KV 230KV Brushless Outrunner Sensorless Motor for DIY Freestyle Drone/Fixed Wing Plane/UAV
Regular price
$105.90 USD
Regular price
Sale price
$105.90 USD
Unit price
per
Couldn't load pickup availability
1/10PCS MAYRC 6355 70KV 230KV Brushless Outrunner Sensorless Motor for DIY Freestyle Drone/Fixed Wing Plane/UAV
Specification:
| Model No. | MTO6355-70-G | MTO6355-230-G | MTO6355-250-G |
| KV | 70 | 230 | 250 |
| Shaft(mm) | Ф10.0mm | Ф10.0mm | Ф8.0 |
| Max. Current | 50A | 50A | 60A |
| Input Volt. | 6-14S Li-Po | 6-14S Li-Po | 6-14S Li-Po |
|
Net Weight (g) |
522 | 522 | 522 |
| Stator Size | Φ53x35.0 | Ф53.0 x 35.0 | Ф53.0 x 35.0 |

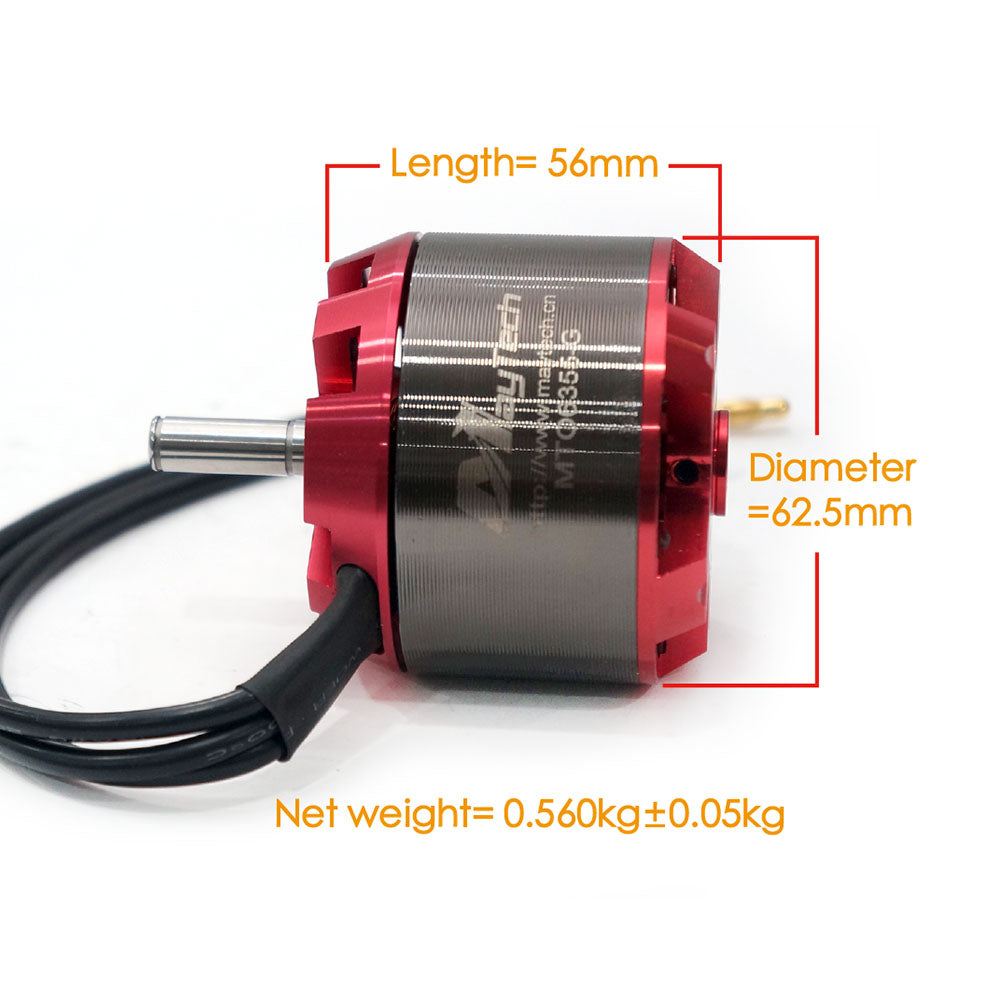

| Motor Size | Ф63.0X62.0 | Ф63.0 x 62.0 | Ф63.0 x 62.0 |
| Thurst (g) | 11500 | 11000 | 11500 |
Notice：
Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email：shelly@mayrc.com
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Application:
Airplane / RC Airplane / 3D flying / RC Hobby Applications / sport flying / aggressive aerobatics / helicopter / racing airplane / ROV / ROVEEE / remote operated vehicle / underwater robot / Underwater Robotics / underwater remotely operated vehicles / subsea robots, etc.
